Eye Bolts and Nut to suit most lifting or pulling applications
Showing 1–16 of 40 results
* Zinc Plated
* Fold-Away Ring

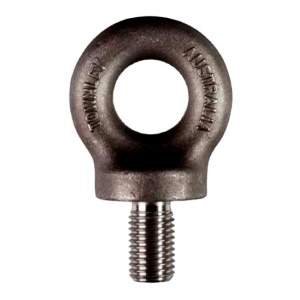

TOWNLEY Australia Quality to AS2317:2018
* Grade 4 Material
* 6:1 Safety Factor

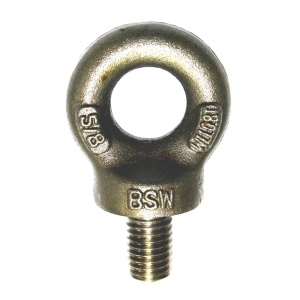

Complies with BS4278-1
Marked with Thread Type, Size, Rating, Batch No.
3/8" 0.25T WLL - Eye 13mm ID
1/2" 0.40T WLL - Eye 19mm ID
5/8" 0.80T WLL - Eye 23mm ID
3/4" 1.60T WLL - Eye 28mm ID
7/8" 2.00T WLL - Eye 32mm ID
1.0" 2.50T WLL - Eye 37mm ID

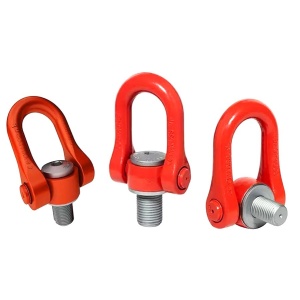

* Unique Identification
* Manufactured "Inhouse" Luxembourg
* International Standards EN1677-1
* Full Factory Traceability
* Certificate supplied with Product
* Huge 5:1 Safety Factor
* 180 Degree Pivot Under Load
* 360 Degree Swivel Under Load
* Listed WLL at 0 & 90 Degrees

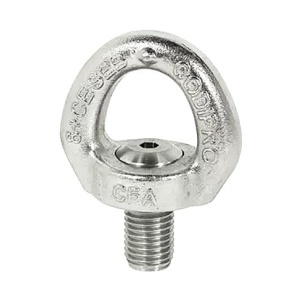

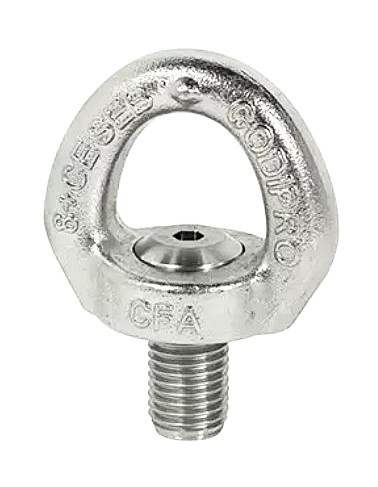

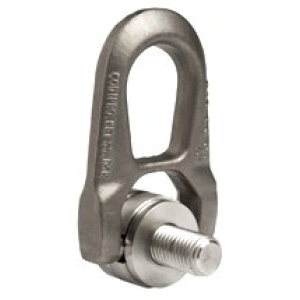

* Quality Grade AISI316L
* FULLY "Load Rated" for Lifting Applications
* Unique Identification Number
* Exceeds EN1677 Standards
* Very High 5:1 Safety Factor
* Swivelling Under Load
* Certificate Supplied with Ring
* Listed WLL at 0 & 90 Degrees
Click On "DOWNLOAD" for dimensions and welding instructions
* Unique Identification Number
* Exceeds EN1677 Standards
* Very High 5:1 Safety Factor
* Swivelling Under Load
* Certificate Supplied with Ring
* Listed WLL at 0 & 90 Degrees
Click On "DOWNLOAD" for dimensions and welding instructions
Industrial Grade 80 and Spring Loaded, Designed for Lifting and Transportation Lashing Applications
Each Weld-On Ring is clearly Marked showing Lift and Pull (Lashing) Rating.
For Lifting the Safety Factor is 4:1, complying with relevant NZ Standards
For Pulling / Lashing the Safety Factor is 2:1, exceeding LTSA guidelines
* Grade 80
* Safety Factor 4:1
* Marking & Traceability
* Standards CE EN1677-1
* Made in China
* Powder Plastified Yellow RAL1003
* Metric Standard Thread
"Straight Lift Rating" Check Chart for 90 Deg Lift

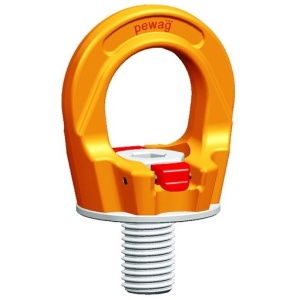

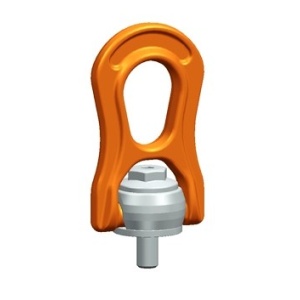

Top Quality Quality from AUSTRIA
* Individual Identification Traceability
* 360 Degree Rotation
* 180 Degree Load Range
* High Grade 10.9 Crack Tested Bolt
Non Stock - Indent Item
Delivery Approx 2 weeks
Tool-free assembly and disassembly
* 360 Degree Rotation
* High Grade 10.9 Crack Tested Bolt
* Forged Super Alloy Steel
* Quenched & Tempered
* 100% Magnaflux Crack Detection
* Powder Plastified Finish

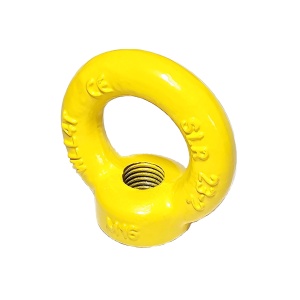

* Grade 80, EN1677
* Metric Standard Thread
Markings..
SLR, CE, Size, WLL, Batch No.
Dynamo Type

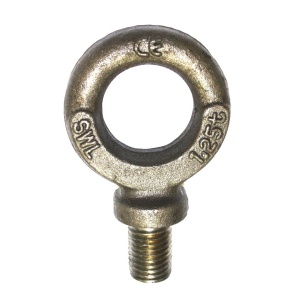

Complies with DIN580
Marked with Thread Type, Size, Rating, Batch No.
M8 0.15T WLL - Eye 21mm ID
M10 0.23T WLL - Eye 21mm ID
M12 0.34T WLL - Eye 29mm ID
M16 0.63T WLL - Eye 30mm ID
M20 1.20T WLL - Eye 38mm ID
M24 1.80T WLL - Eye 49mm ID
Manufactured to British Standards BS4278-3
* 0.32T WLL
* 22mm ID Eye
* Metric Thread 12mm
Zinc Plated
Complies with DIN 580
Material: C15
Marked with Thread Type, Size, Rating, Batch No.

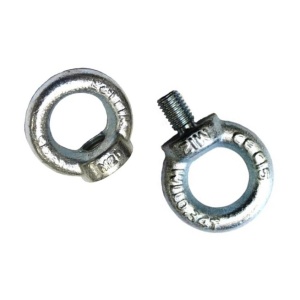

Complies with DIN582, Zinc Plated (Z/P)
Marked with Thread Type, Size, Rating, Batch No.
M6 0.08T (80KG) WLL - Eye 20mm ID
M8 0.14T WLL - Eye 20mm ID
M10 0.23T WLL - Eye 25mm ID
M12 0.34T WLL - Eye 30mm ID
M16 0.70T WLL - Eye 35mm ID
M18 0.93T WLL - Eye 40mm ID
M20 1.20T WLL - Eye 40mm ID
M24 1.80T WLL - Eye 50mm ID

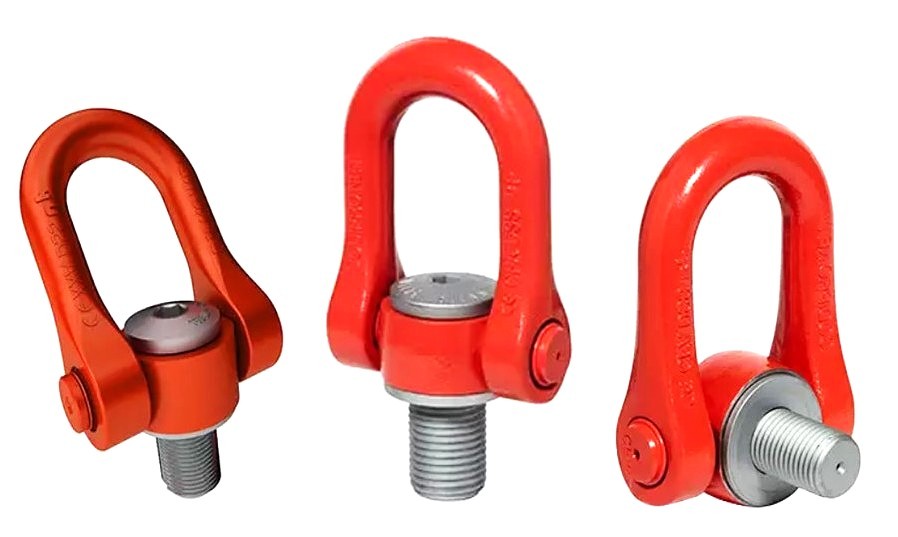

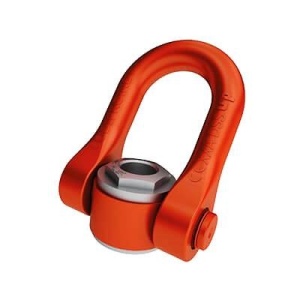

* Unique Identification
* Manufactured "Inhouse" Luxembourg
* International Standards EN1677-1
* Full Factory Traceability
* Certificate supplied with Product
* Huge 5:1 Safety Factor
* 180 Degree Pivot Under Load
* 360 Degree Swivel Under Load
* Listed WLL at 0 & 90 Degrees
CODIPRO Manufacturer 7 Year Warranty
