13mm x 52.6P AMG Oxide Con-Stk - 150m Drum VIP

Name: 13mm x 52.6P AMG Oxide Con-Stk - 150m Drum VIP
SKU: FOWC-13x52.6DPBK CS
Availability: InStock

13mm x 52.6P AMG Oxide Con-Stk - 150m Drum VIP

Ref:

SKU: FOWC-13x52.6DPBK CS Category: McIntosh Parts - Private

ON-CONSTOCK AT McINTOSH

Special Feed Out Wagon Chain

* Grade 80

* Calibrated Mid Link Chain

* 52.6mm Pitch

* 11 Links Length 578mm

* 46mm - Outside Width

* Black Oxide gives a Gunmetal Colour Finish

* MBL 214kN

Stamped with..

* Brand "AMG"

* Grade/Link Size

* Traceabilty Batch Number

Sold Per Full Drum Only..

$3,696.00

each

9 in stock

More information:

8 Drums for con-stock collected from HES NZ 25.08.2025

8 Drums for con-stock collected from HES NZ 30.04.2025

6 Drums for con-stock collected from HES NZ 29.01.2025

8 Drums for con-stock collected from HES NZ 09.08.2024

8 Drums for con-stock collected from HES NZ 10.04.2024

12 Drums for con-stock collected from HES NZ 15.05.2023

10 Drums for con-stock collected from HES NZ 19.12.2022

Full Drum 150m / 500kg

Downloads:

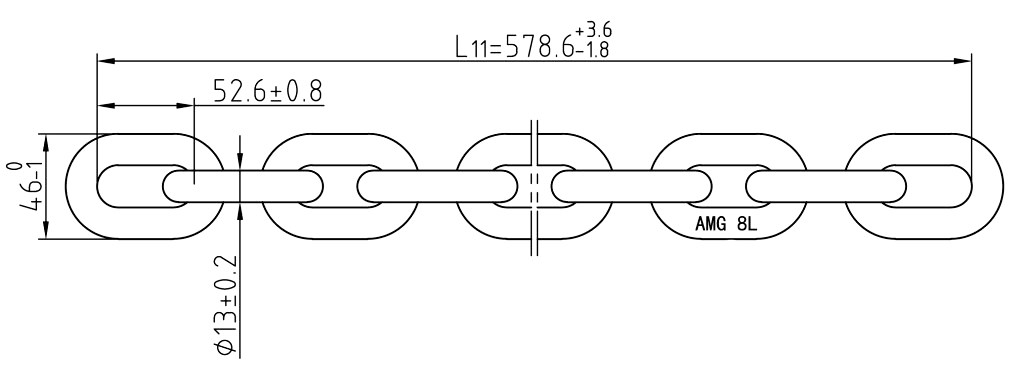

FOWC Drawing 13x52.6 Black.jpg
