All Lifting Chain Sets are Custom Assembled at HES NZ to ensure they meeting the day to day or specialized applications required using chain and components manufactured in Europe and Asia.
All Lifting Sets are Individually Tagged, Certified and supplied in accordance with International EN818, NZ Rigging Code of Practice & LEENZ specifications..
THIELE (Germany), SLR (China) TiTan & AMG (Australia) recommend a “Through Visual Inspection” only, not exceeding 12 months for G80 & G100 Chain & Components… (Not Proof Loading).
Showing all 11 results

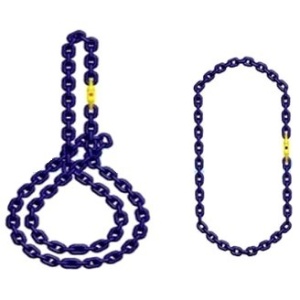

This ratings chart shows mamimum ratings depending on how the Endless Chain is used..
Items to Price Up.
Double the Effective length of chain
1 off Chain Connector
1 off WLL / ID Tag
Must be priced up (Quoted) and ordered using individual components & chain.
The Connector and Chain MUST be of the same Grade (i.e G80 or G100)

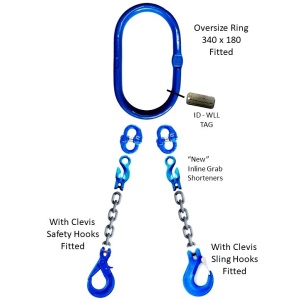

For Big Hook Heavy Crane Applications.
Assembled Using:
* 340×180 Oversize Ring
* New Inline Leg Shorteners
* Identification Tag
* Compliance Cert to BS EN818
WLL at 0 to 90 Degrees
0 – 3.5T Lift – 8mm Set
0 – 5.6T Lift – 10mm Set
0 – 9.3T Lift – 13mm Set
0 -14.0T Lift – 16mm Set
0 – 22.4T Lift – 20mm Set
0 – 26.5T Lift – 22mm Set
C/w ID-WLL Tag & Certificate

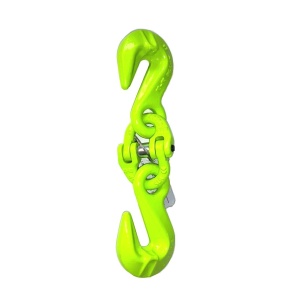

This G100 Grab Assembly can be easily fitted and removed anywhere along a chain to shorten as required.
* All components are Grade 100
* Can be used on both G100 & G80 Chain Legs
C/w ID-WLL Tag & Certificate

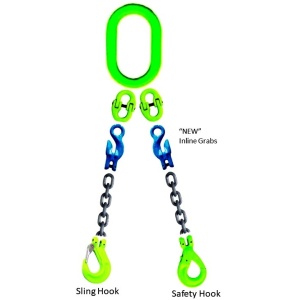

These “Grade 100” Lifting Chain Set are 25% Stronger than standard grade 80 sets…
Supplied with:
* New Inline Grab Shorteners
* Compliance Certificate to BS EN818
WLL at 0 to 90 Degrees
0 – 3.5T Lift – 8mm Set
0 – 5.6T Lift – 10mm Set
0 – 9.3T Lift – 13mm Set
0 -14.0T Lift – 16mm Set
0 – 22.4T Lift – 20mm Set
0 – 26.5T Lift – 22mm Set
C/w ID-WLL Tag & Certificate

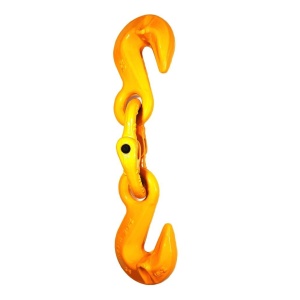

This G80 Grab Assembly can be easily fitted and removed anywhere along a chain to shorten as required.
* All components are Grade 80
This SLR G80 Grab Assembly can be easily fitted and removed anywhere along a chain to shorten as required.
* Supplied with Alloy Identification Tag
* All components are Grade 80

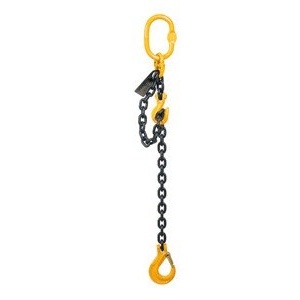

C/w ID-WLL Tag & Certificate
These Lift Ratings are for Straight Lift Applications
0 to 1.12T Lift – 6mm Chain
0 to 1.50T Lift – 7mm Chain
0 to 2.00T Lift – 8mm Chain
0 to 3.15T Lift – 10mm Chain
0 to 5.30T Lift – 13mm Chain
0 to 8.00T Lift – 16mm Chain
0 to 12.5T Lift – 20mm Chain (Safety Hooks Only)
All Chain Sets are made to order..

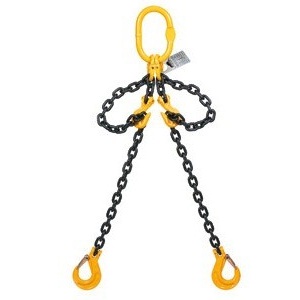

C/w ID-WLL Tag & Certificate
WLL at 0 to 90 Degrees
0 to 1.60T Lift – 6mm Chain
0 to 2.12T Lift – 7mm Chain
0 to 2.80T Lift – 8mm Chain
0 to 4.25T Lift – 10mm Chain
0 to 7.50T Lift – 13mm Chain
0 to 11.2T Lift – 16mm Chain
0 to 17.0T Lift – 20mm Chain (Safety Hooks Only)
Ratings will reduce as angle increases

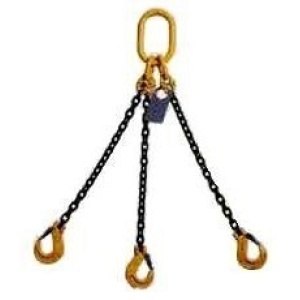

C/w ID-WLL Tag & Certificate
WLL 0 to 90 Degrees
0 to 2.36T Lift – 6mm Chain
0 to 3.15T Lift – 7mm Chain
0 to 4.25T Lift – 8mm Chain
0 to 6.70T Lift – 10mm Chain
0 to 11.20T Lift – 13mm Chain
0 to 17.00T Lift – 16mm Chain
0 to 26.50T Lift – 20mm Chain (Safety Hooks Only)
Ratings will reduce as angle increases
C/w ID-WLL Tag & Certificate
WLL 0 to 90 Degrees
0 to 2.36T Lift – 6mm Chain
0 to 3.15T Lift – 7mm Chain
0 to 4.25T Lift – 8mm Chain
0 to 6.70T Lift – 10mm Chain
0 to 11.20T Lift – 13mm Chain
0 to 17.0T Lift – 16mm Chain
0 to 26.50T Lift – 20mm Chain (Safety Hooks Only)
Ratings Chart – NZ Department of Labour 2013
Use Trigonometic rating if for single purpose application
Supplied with ID / WLL Tag Fitted…
4 Options / Overall Length
1.5m c/w 1.3T Clutches
2.0m c/w 1.3T Clutches
1.5m c/w 2.5T Clutches
2.0m c/w 2.5T Clutches
