Providing the winch is installed in the correct manner allowing the rope to position properly, it can virtually be mounted in any position, Horizontal, vertical, upside down, etc.
This capacity has 2 spring loaded pawls that activate the brake. (refer attached manual).
Suggest the user read the manual and ensure they follow the “Warnings & Precautions”
Click the DOWNLOAD box to access the manual…
A Minimum load of 5% is required to engage the Auto Brake system..

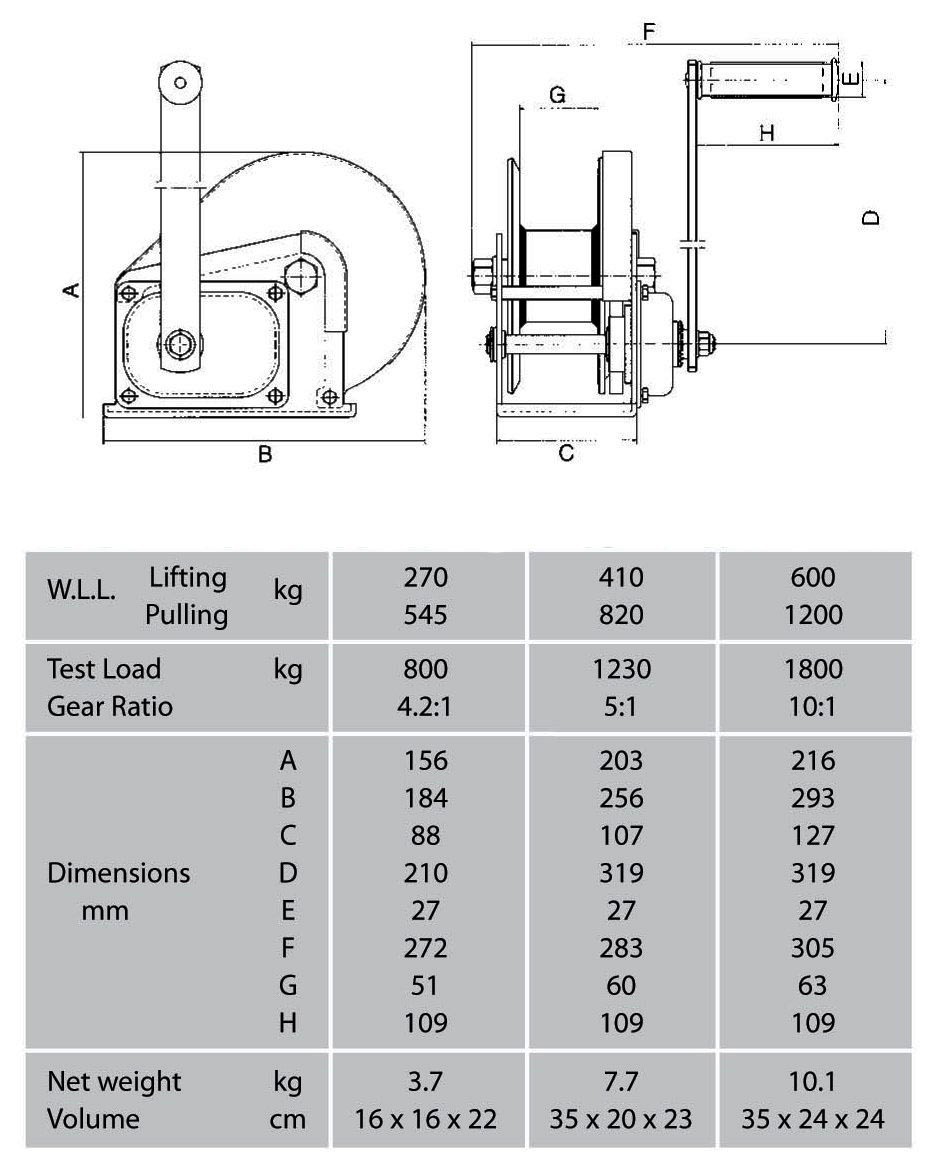

270Kg Lift Winch 4.2:1 Recommend Max 4mm Dia x 30m 7X19 IWRC Wire Rope
410kg Lift Winch 5:1 Recommend Max 5mm Dia x 32m 7X19 IWRC Wire Rope
600kg Lift Winch 10:1 Recommend Max 6mm Dia x 28m 7X19 IWRC Wire Rope
