ASTM A194 Grade 4 is a standard material specification for high tensile threaded fasteners (Eye Blts & Eye Nuts) made from carbon molybdenum steel.

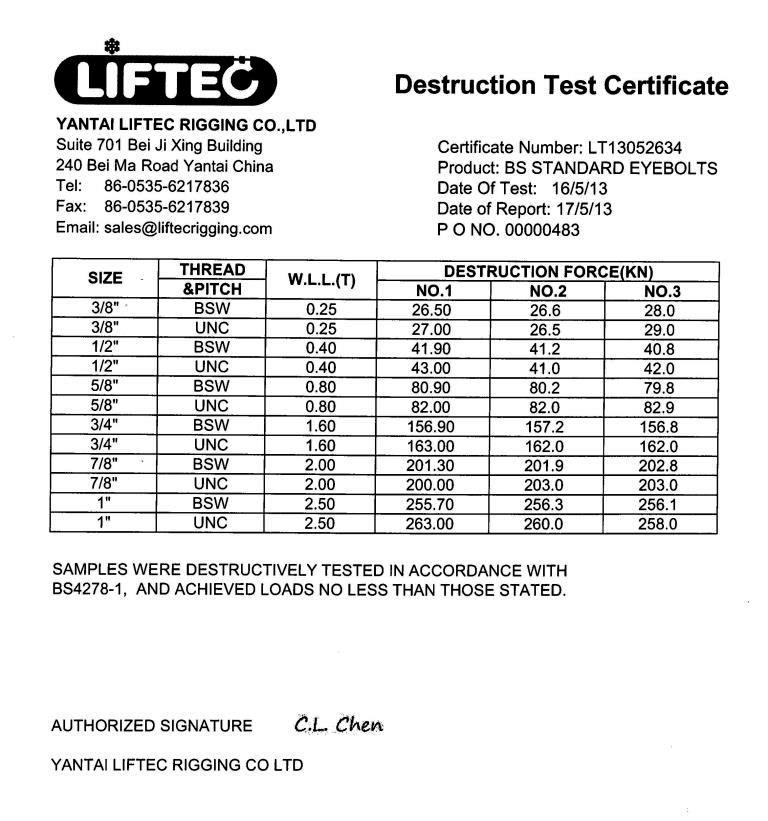

Downloads:
UNC Collard Eye Bolt – Black
UNC Collard Eye Bolt – Black
$8.00
Each
Each
Complies with BS4278-1
Marked with Thread Type, Size, Rating, Batch No.
3/8″x 17mm 0.25T WLL – Eye 13mm ID
1/2″x 18mm 0.40T WLL – Eye 19mm ID
5/8″x 25mm 0.80T WLL – Eye 23mm ID
3/4″x 31mm 1.60T WLL – Eye 28mm ID
7/8″x 37mm 2.00T WLL – Eye 32mm ID
1.0″x 38mm 2.50T WLL – Eye 37mm ID
1.1/4″x 50mm 5.00T WLL – Eye 48mm ID
| Weight | 0.07 kg |
|---|---|
| Size Options | 1.1/4" – 1.25T @ 90Deg (5.0T Straight), 1.0" – 0.62T @ 90Deg (2.5T Straight), 1/2" – 0.10T @ 90Deg (0.40T Straight), 3/4" – 0.40T @ 90Deg (1.6T Straight), 3/8" – 0.06T @ 90Deg (0.25T Straight), 5/8" – 0.20T @ 90Deg (0.80T Straight), 7/8" – 0.50T @ 90Deg (2.0T Straight) |
