Please Note: Weld prior to galvanizing..

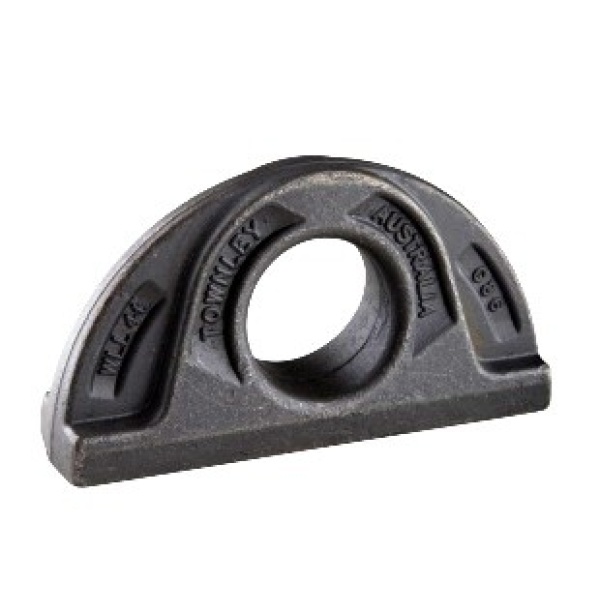

Townley Lifting Deck Plate – Weld On
Townley Lifting Deck Plate – Weld On
$72.00
Each
Each
* Made in Australia, exclusive to HES NZ
* Rated to suit G100 Lifting Components
* Forged Steel – Grade 300PLUS
* 4:1 Safety Factor to AS1554
* Full Lifting Working Load (WLL) ALL Angles
* Double WLL for Lashing (PULL) Applications
| Weight | 0.5 kg |
|---|---|
| Size / Rating | 1.6T Lift / 3.2T Pull – 30mm ID Eye, 10.0T Lift / 20T Pull – 80mm ID Eye, 2.5T Lift / 5.0T Pull – 35mm ID Eye, 4.0T Lift / 8.0T Pull – 45mm ID Eye, 6.7T Lift / 13.4T Pull – 60mm ID Eye |
