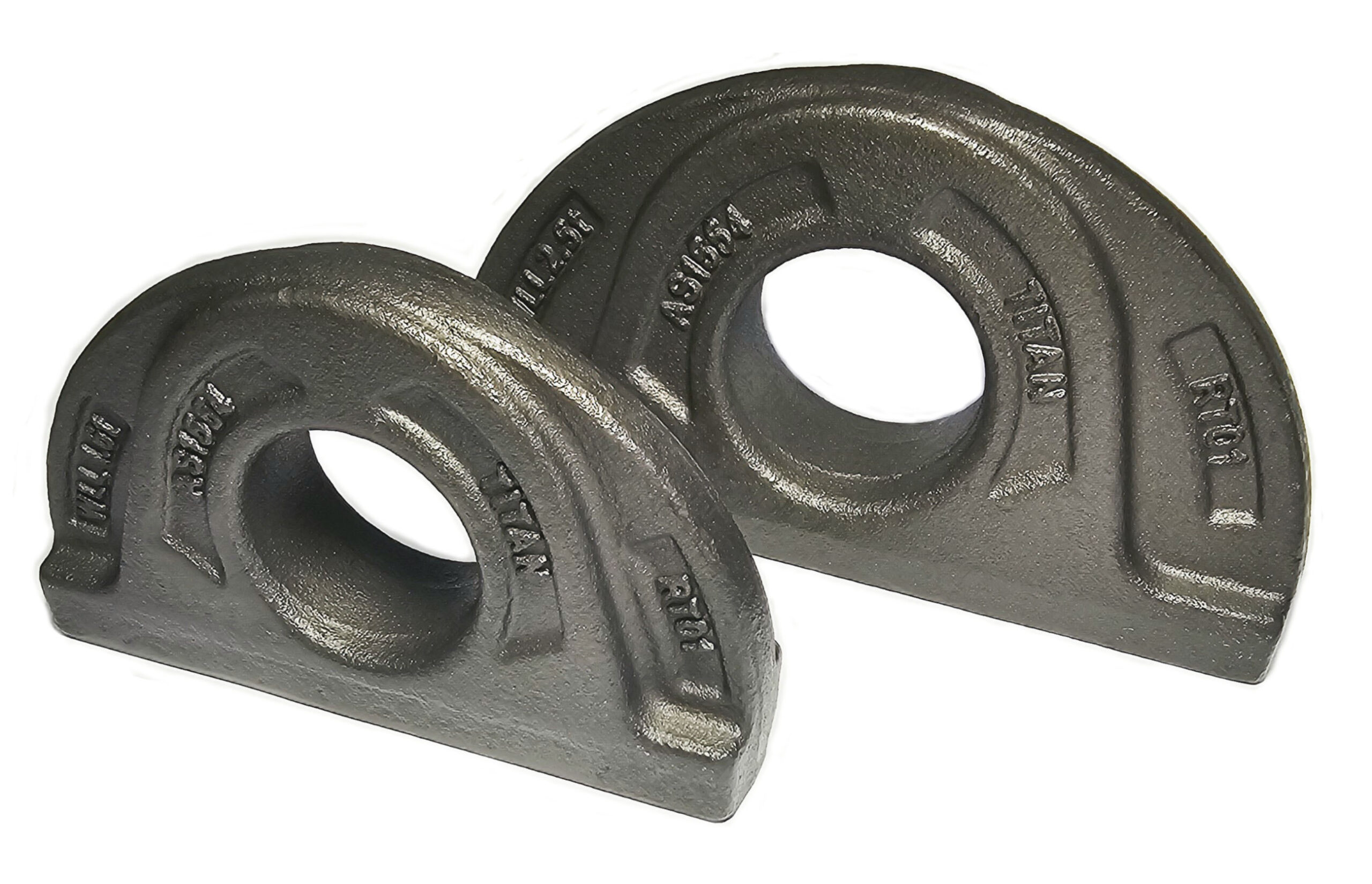

Titan Lifting Deck Plate - Weld On

Name: Titan Lifting Deck Plate - Weld On
SKU: 88535
Availability: InStock

Titan Lifting Deck Plate - Weld On

Ref:

SKU: N/A Categories: Fittings - Rated G70 & G80, SLR, Weld-On Lifting Fittings

* Rated to suit G100 Lifting Components

* Forged Steel - Grade 300PLUS

* 4:1 Safety Factor

* Complies with Australian Standards AS1554

* Full Lifting Working Load (WLL) ALL Angles

* Double WLL for Lashing (PULL) Applications

Identification Markings

* Brand

* Rating

* Standard

* Batch No.

Titan User Guide

Weld Instruction Sheet

$36.00

each

Rated

Clear

More information:

Full Box Quantites: 1.6T - 24Pce Box, 2.5T - 22Pce Box,

4.0T - 11Pce Box, 6.7T - 7Pce Box
