Titan G80 Wide Mouth Safety D Shackle (4Pce)

Name: Titan G80 Wide Mouth Safety D Shackle (4Pce)
SKU: 889-16 2T
Availability: InStock

Titan G80 Wide Mouth Safety D Shackle (4Pce) - Image 2

Titan G80 Wide Mouth Safety D Shackle (4Pce)

Ref:

SKU: 889-16 2T Categories: G80 - SLR Components, Shackle - Rated

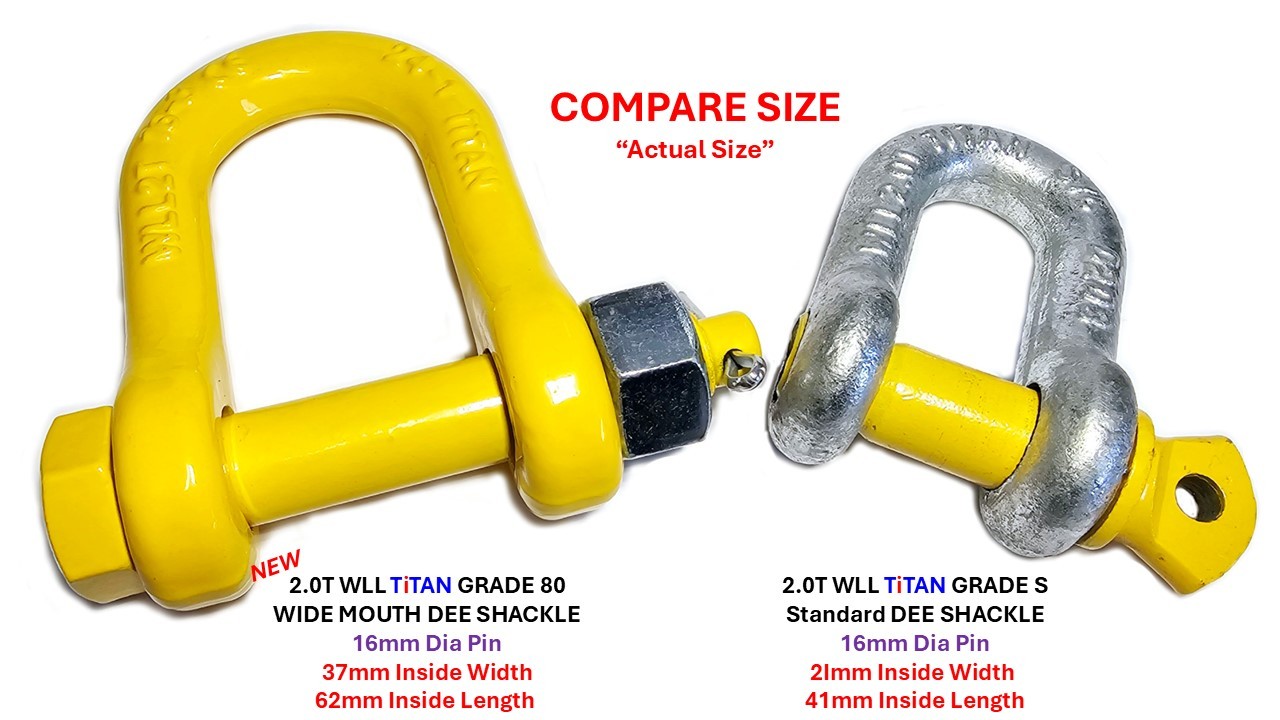

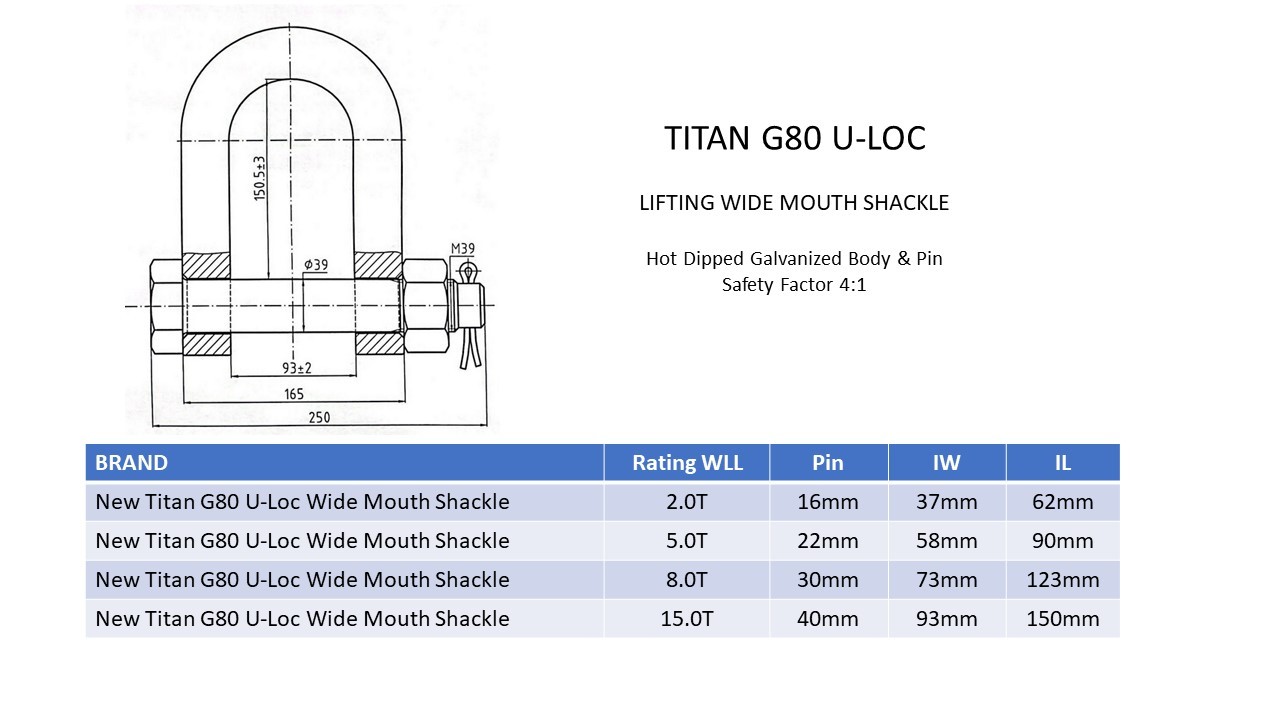

TiTAN G80 Wide Mouth Dee Shackle

Fully Complies with EN1677

Safety Factor 4:1

Standards Tolerance: +8% to -5%

Material Alloy Grade 80

Supplied By AMG/TiTAN Australia

Finish: Electro Galvanized then Painted

Clearly Marked with...

Brand, Grade, Size, Rating & ID Batch No., CE

* Double the Rating for Pulling Applications

$60.00

each

Size / Rating

Clear

More information:

Titan Grade 80 Lifting Shackle are electro galvanized, then painted.

Downloads:

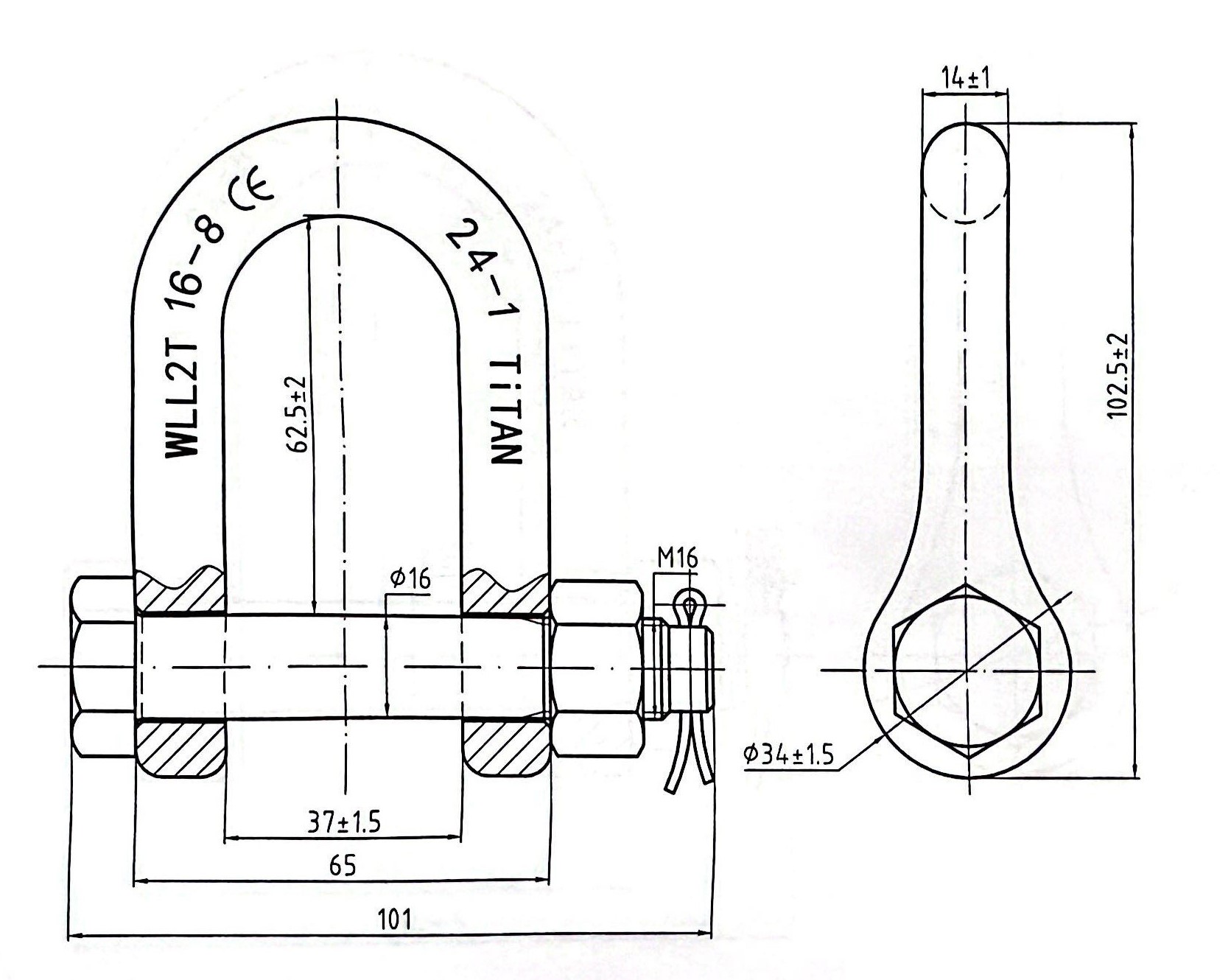

2T Titan WM Shackle.jpeg

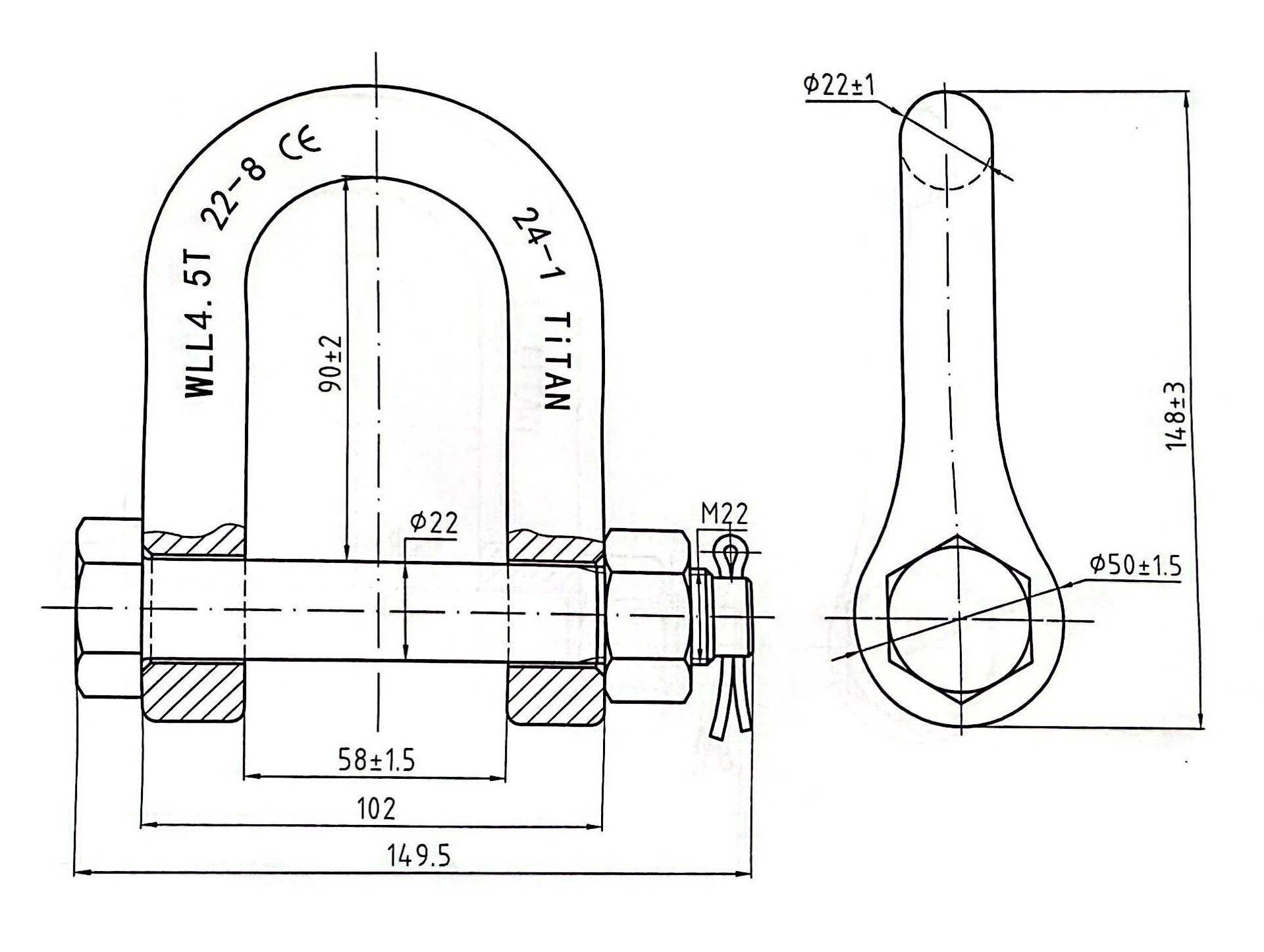

4.5T Titan WM Shackle copy.jpg

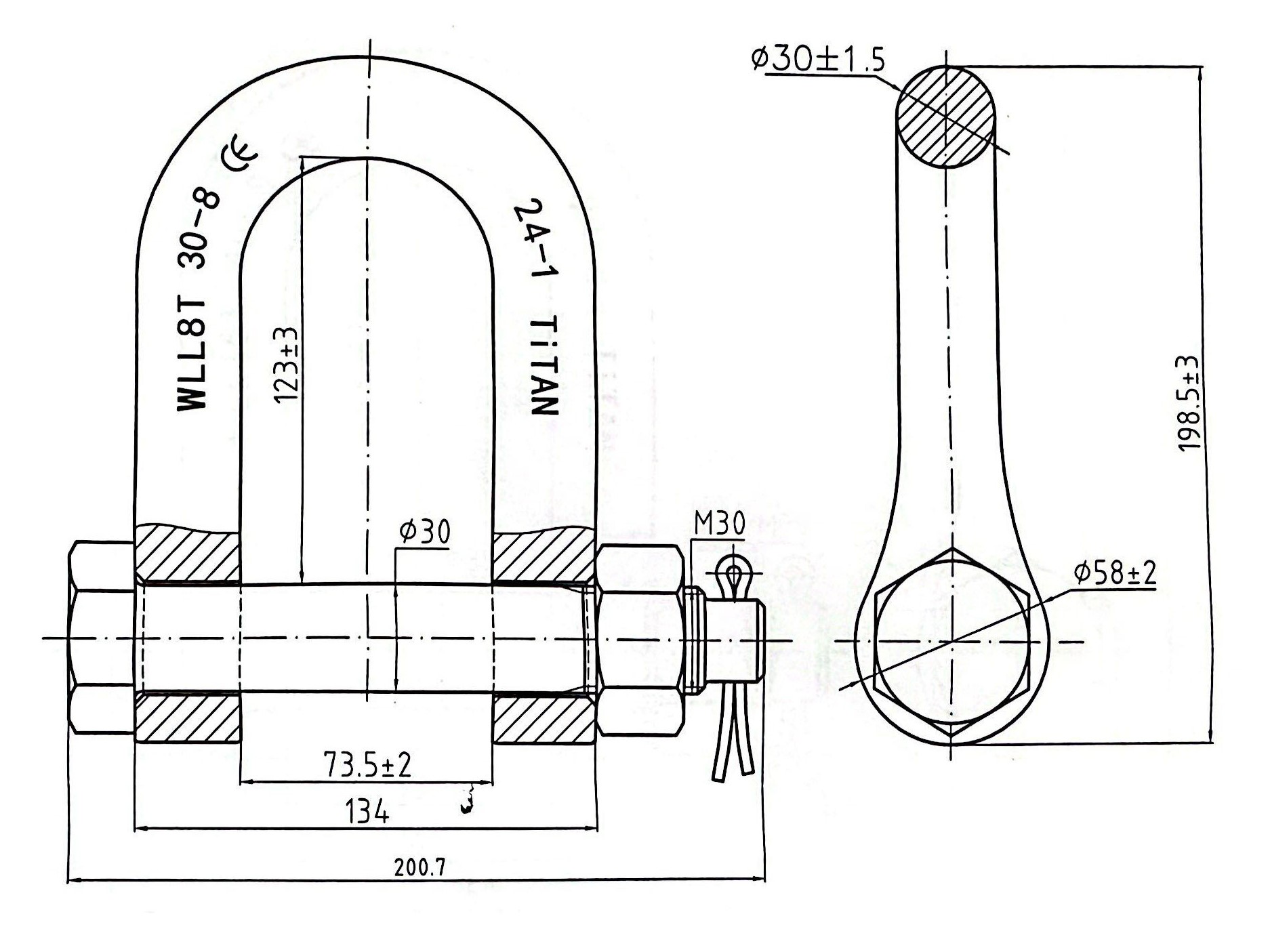

8T Titan WM Shackle.jpg

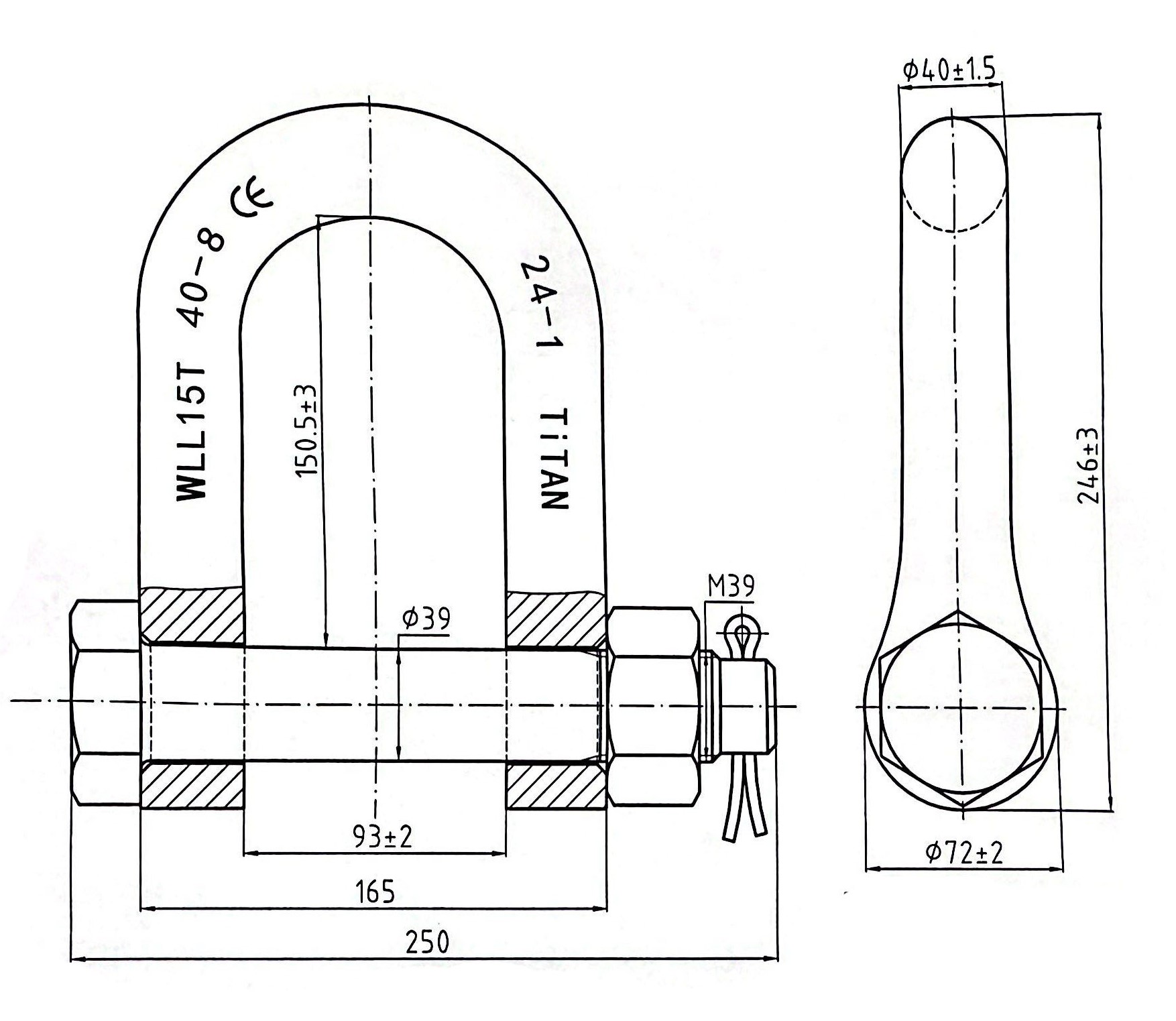

15T Titan WM Shackle.jpg

SLR889 Titan Shackle 24.1.pdf
