If you require a Nut to fasten, SLR suggest using a Grade 8.8 or above.
Box Quantities: M8/50, M10/40, M12/40, M16/30, M20/20, M24/15, M30/8, M36/3, M42/3
Downloads:
Swivel Lifting Eye Ring – SLR Grade 80
Swivel Lifting Eye Ring – SLR Grade 80
$86.00
Each
Each
Markings..
* WLL at 90 Degree Angle Lift
* CE & Batch ID Number
* Manufacture Marking
* Thread Size & Length
Extra Info..
* International Standards BS-EN818
* 100% Magnaflux Tested
* Forged Super Alloy Steel
* Quenched & Tempered

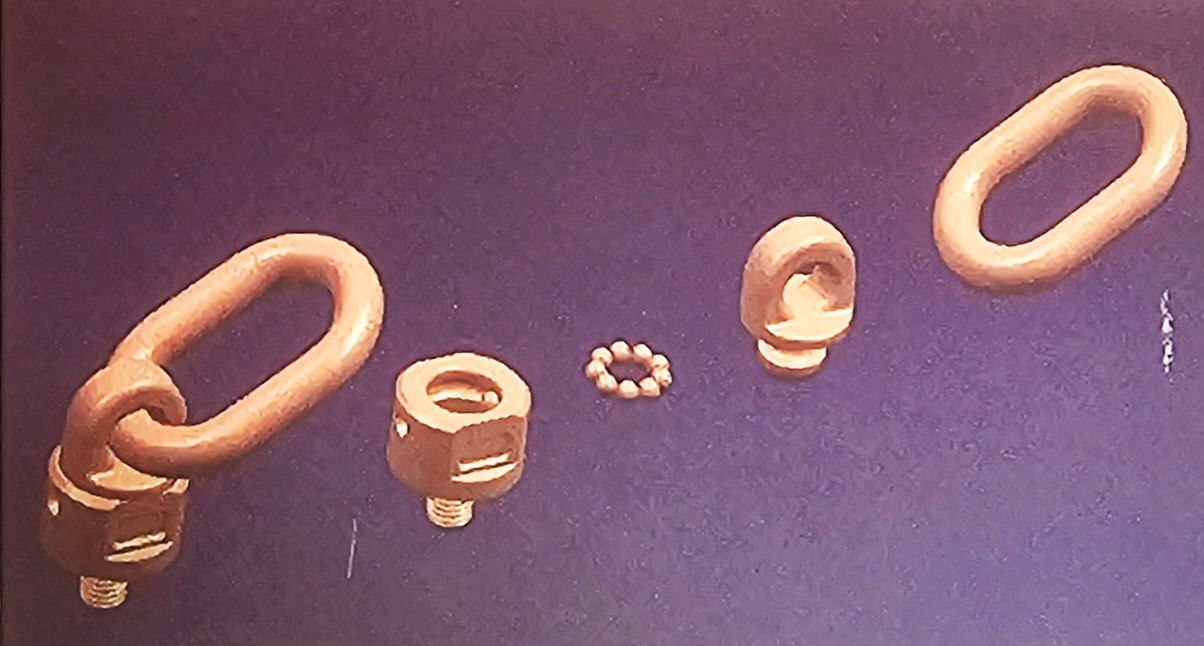

* 360 Degree Bearing Swivel Eye
* 180 Degree Swivel Ring
| Weight | 0.42 kg |
|---|---|

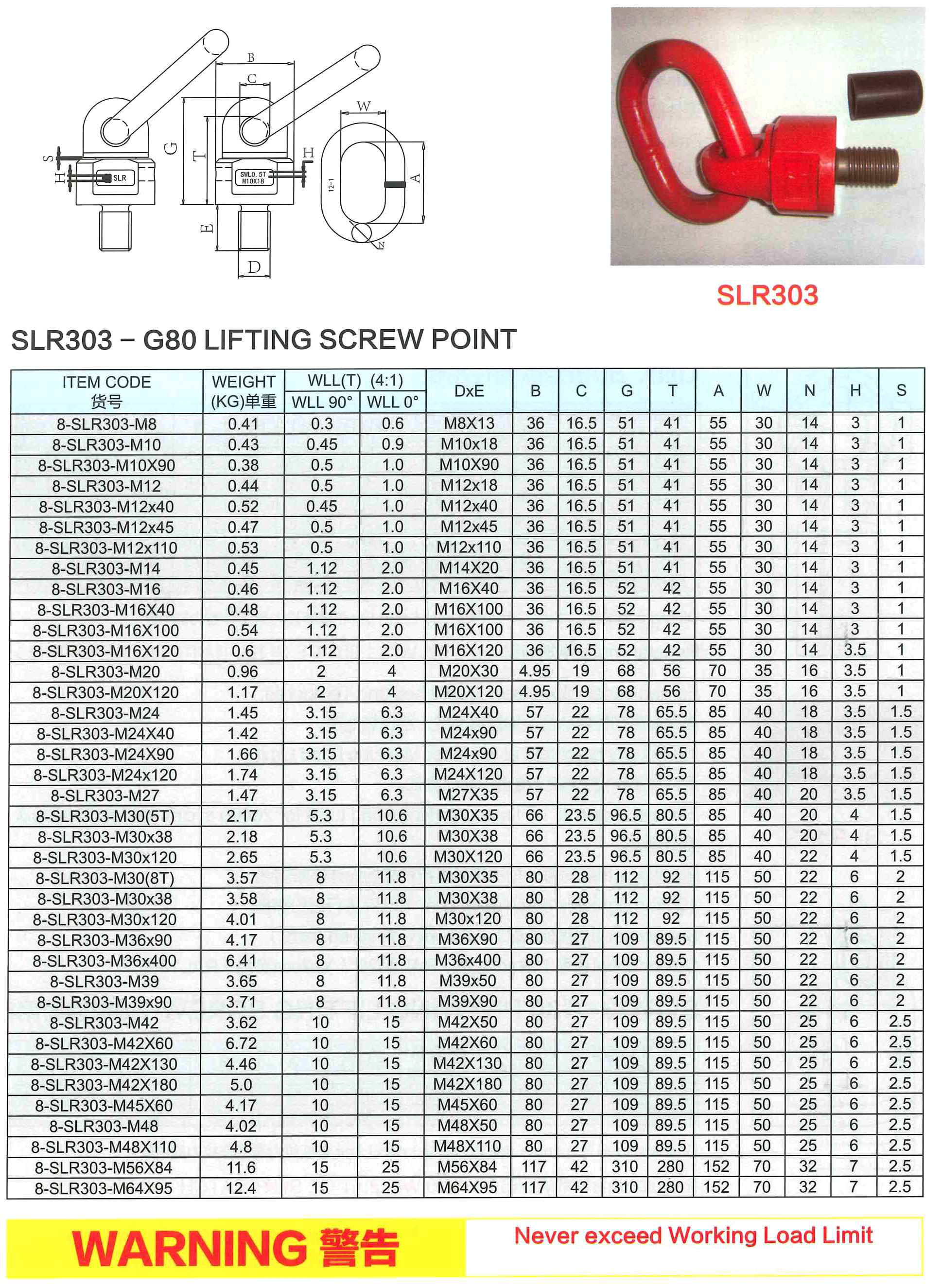

| Size Options | M16 x 20mm – 2.0T / 1.2T @ 90 Deg, M10 x 18mm – 1.0T / 0.5T @ 90 Deg, M10 x 90mm – 1.0T / 0.5T @ 90 Deg, M12 x 110mm – 1.0T / 0.5T @ 90 Deg, M12 x 18mm – 1.0T / 0.5T @ 90 Deg, M14 x 20mm – 2.0T / 1.2T @ 90 Deg, M16 x 100mm – 2.0T / 1.12T @ 90 Deg, M16 x 40mm – 2.0T / 1.2T @ 90 Deg, M20 x 120mm – 4.0T / 2.0T @ 90 Deg, M20 x 30mm – 4.0T / 2.0T @ 90 Deg, M24 x 40mm – 6.3T / 3.1T @ 90 Deg, M24 x 90mm – 6.3T / 3.15T @ 90 Deg, M27 x 35mm – 6.3T / 3.1T @ 90 Deg, M30 x 120mm – 10.6T / 5.3T @ 90 Deg, M30 x 35mm – 10.3T / 5.3T @ 90 Deg, M36 x 50mm – 11.8T / 8.0T @ 90 Deg, M36 x 90mm – 11.8T / 8T @ 90 Deg, M39 x 50mm – 11.8T / 8.0T @ 90 Deg, M39 x 90mm – 11.8T / 8.0T @ 90 Deg, M42 x 130mm – 15.0T / 10.0T @ 90 Deg, M42 x 50mm – 15T / 10T @ 90 Deg, M48 x 110mm – 15.0T / 10.0T @ 90 Deg, M48 x 50mm – 15.0T / 10.0T @ 90 Deg, M8 x 13mm – 0.6T / 0.3T @ 90 Deg |
