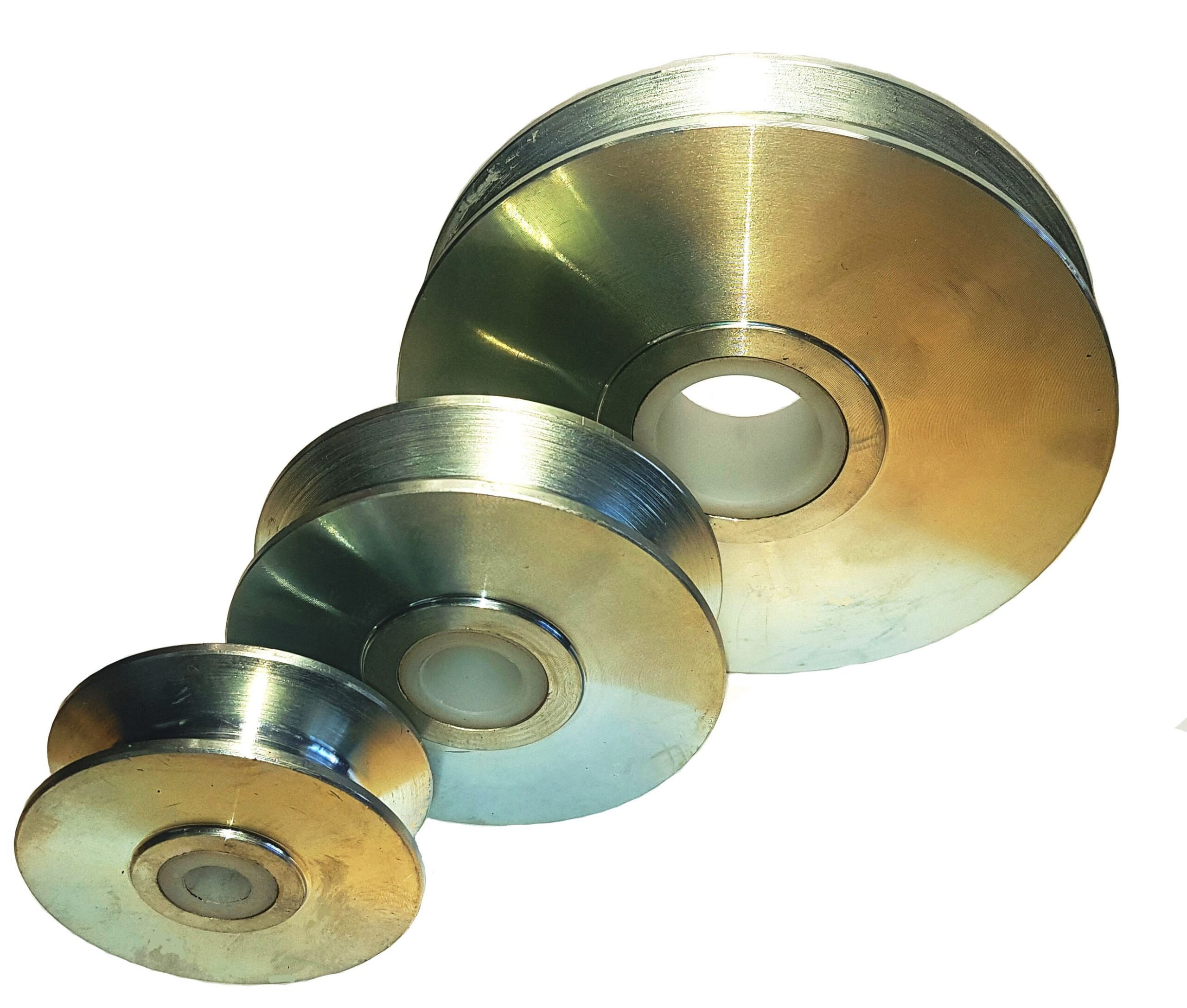

Steel Sheave c/w Nylon Bush
Steel Sheave c/w Nylon Bush
$35.00
Each
Each
* Supplied with 5mm Nylon Bush
* Machined from Steel Bullet
* Zinc Protection Finish
Dimensions

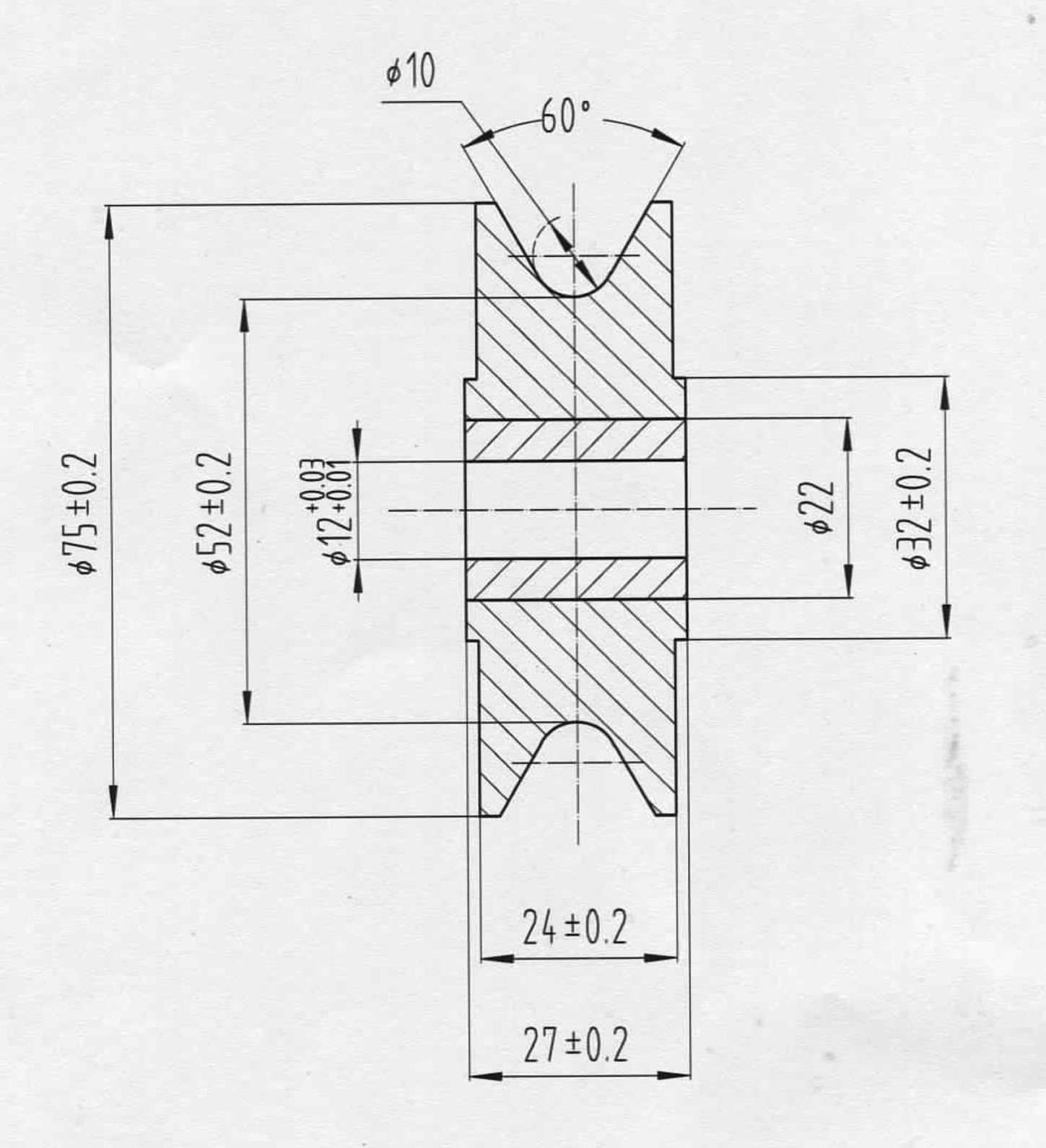

75mm O.D x 27mm O.W – 10mm Wire Rope

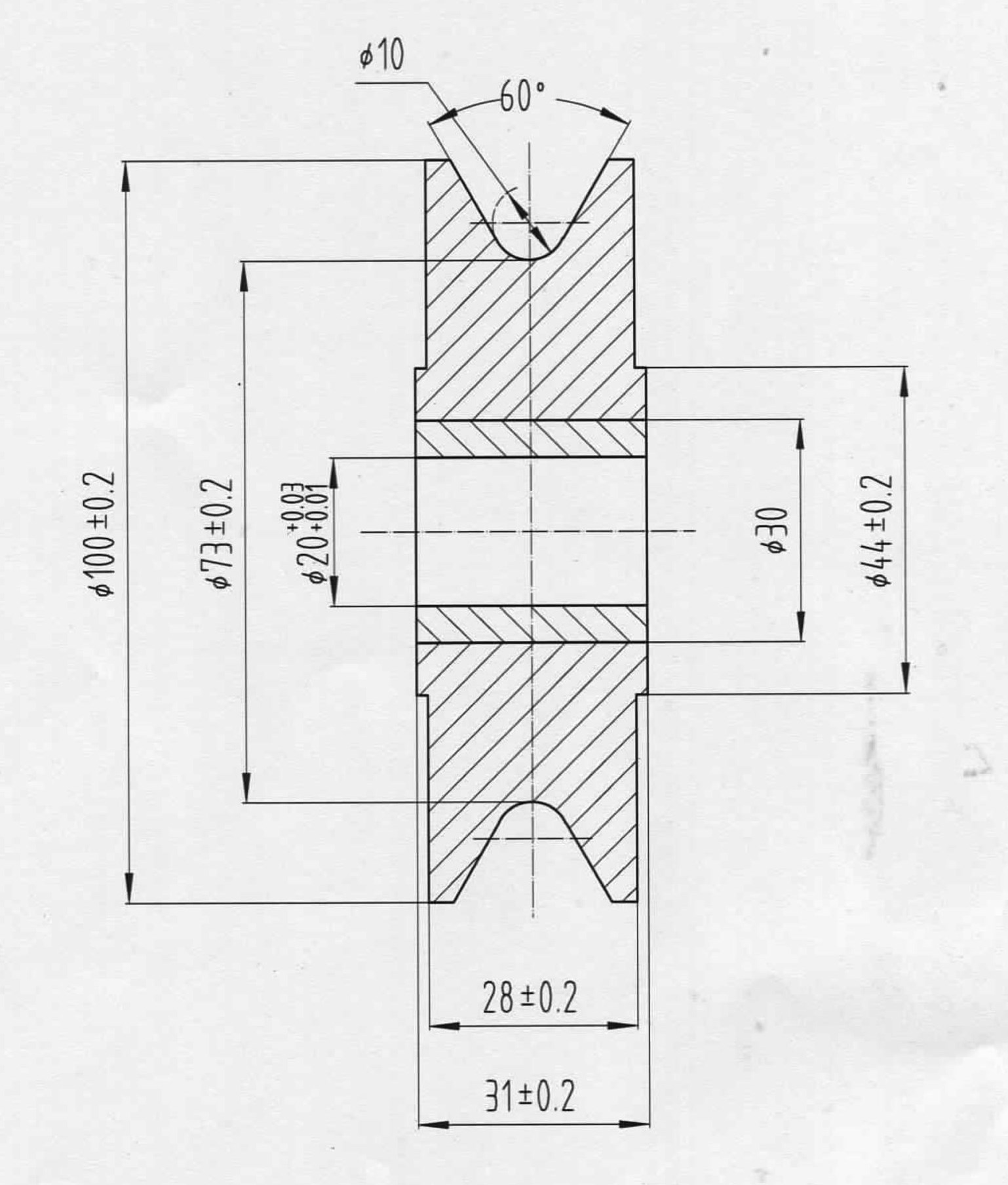

100mm O.D x 31mm O.W – 10mm Wire Rope

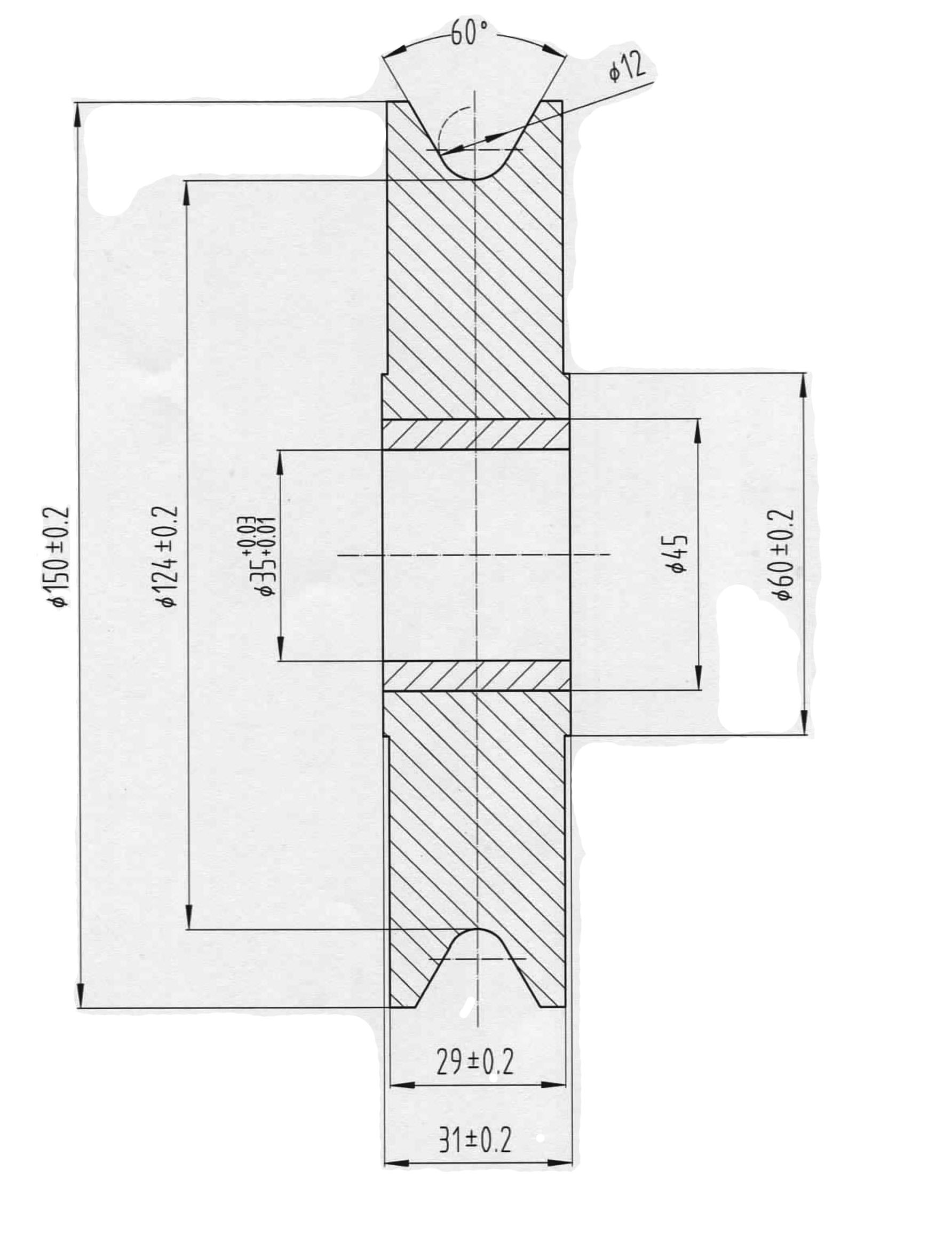

150mm O.D x 31mm O.W – 12mm Wire Rope
| Weight | 1.1 kg |
|---|---|
| Size Options | 100mm Sheave – 20mm Bore, 150mm Sheave – 35mm Bore, 75mm Sheave – 12mm Bore |
