$225.00

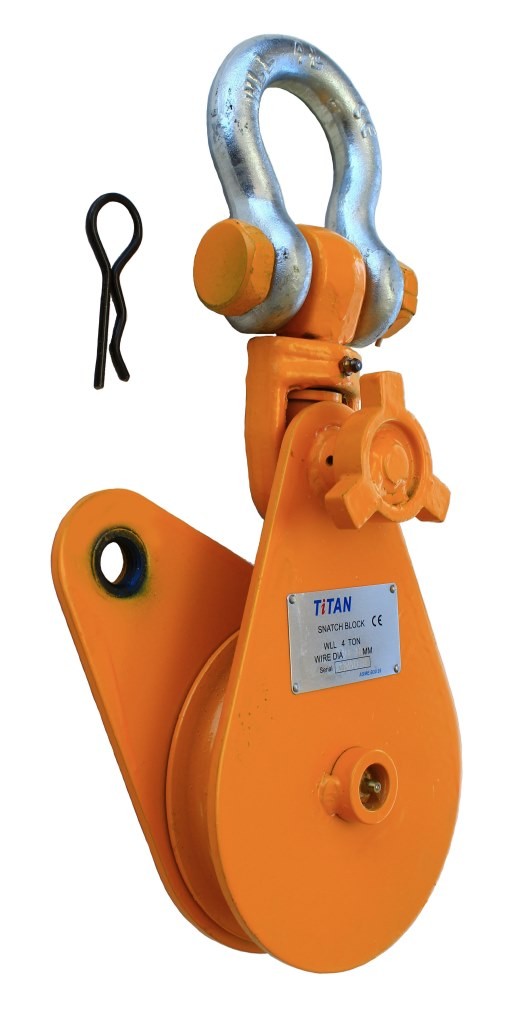

Swivel Eye C/W Safety Shackle
* McKissick Type 419 Design
* Complies with ASME B30.26
* 4:1 Safety Factor
* Ex-AMG Australia (Origin China)
* Individual ID Number
* Certificate supplied with Block
PLEASE NOTE:
2.0T & 4.0T WLL Snatch Blocks – Bronze Bush Sheave & Grease Nipple
6.0T WLL Snatch Blocks and above – Ball Bearing Sheave & Grease Nipple
RATINGS

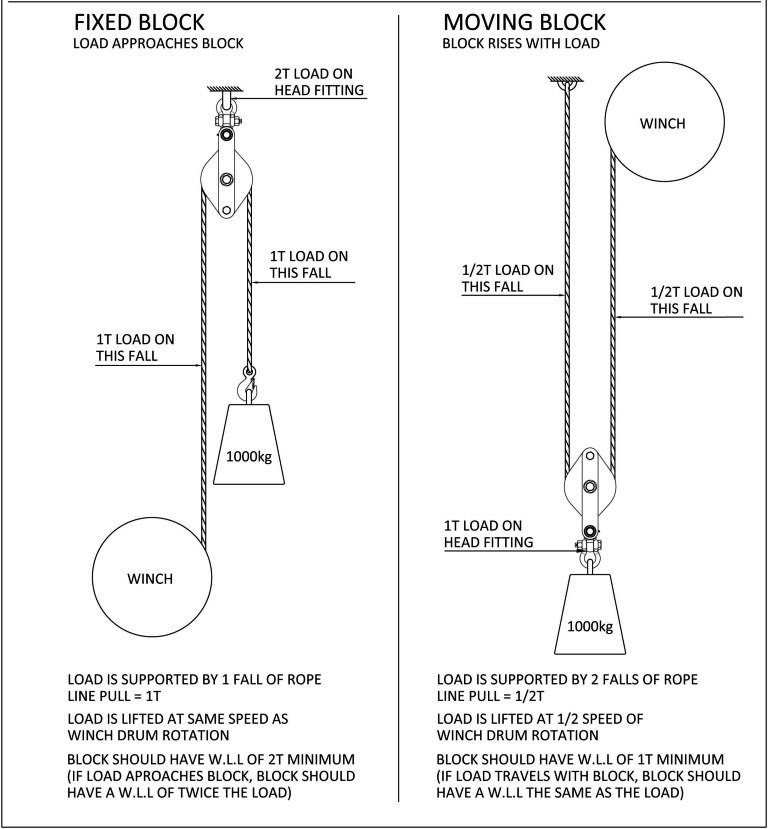

Block Ratings (Fixed/Moving) to suit wire rope..
Hi Load Grade S Shackles Marked/Rated to suit block.
Proof testing is required in accordance with ASME B30.26 for this item to twice its WLL.
Downloads:
| Weight | 3.9 kg |
|---|---|
| Size Options | 12T WLL – 300mm – 20-22mm Wire Dia, 15T WLL – 300mm – 24-26mm Wire Dia, 22T WLL – 355mm – 28-32mm Wire Dia, 2T WLL – 75mm – 7-9mm Wire Dia, 30T WLL – 400mm – 32-35mm Wire Dia, 40T WLL – 600mm – 38-42mm Wire Dia, 4T WLL – 115mm – 10-12mm Wire Dia, 50T WLL – 600mm – 46-51mm Wire Dia, 6T WLL – 150mm – 13-16mm Wire Dia, 8T WLL – 200mm – 16-18mm Wire Dia |
