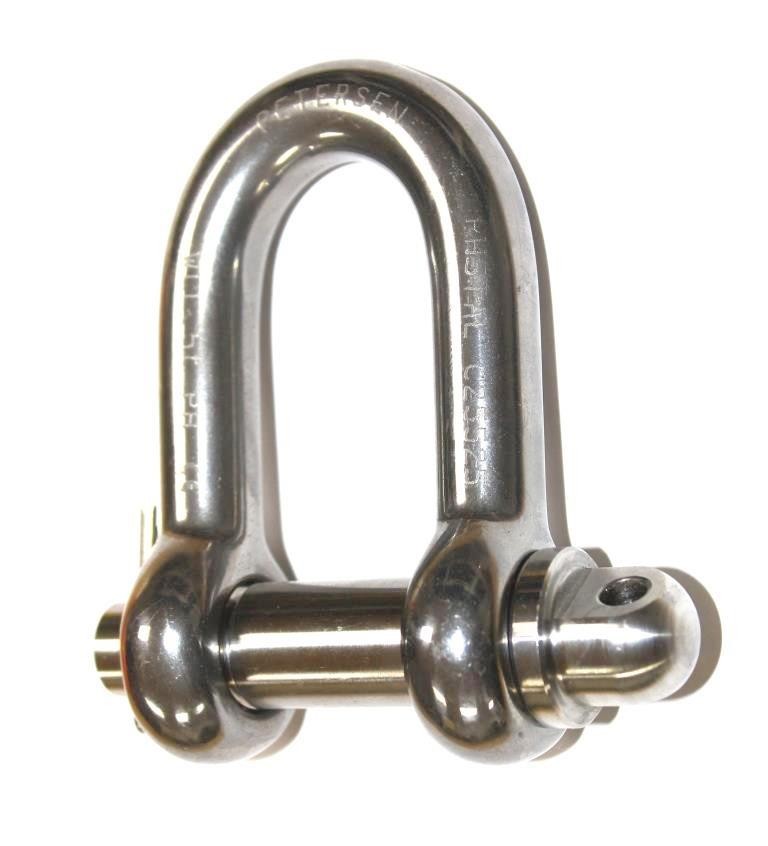

Shackle – PEWAG Rated Stainless Screw Pin

Name: Shackle - PEWAG Rated Stainless Screw Pin
SKU: SMSWI 4/5
Availability: InStock

Shackle - PEWAG Rated Stainless Screw Pin - Image 2

Shackle – PEWAG Rated Stainless Screw Pin

Ref:

SKU: SMSWI 4/5 Categories: Shackles & Karabiners, Shackle - Rated, Rated Lifting Products

Lifting Applications – Supplied by Pewag of Austria

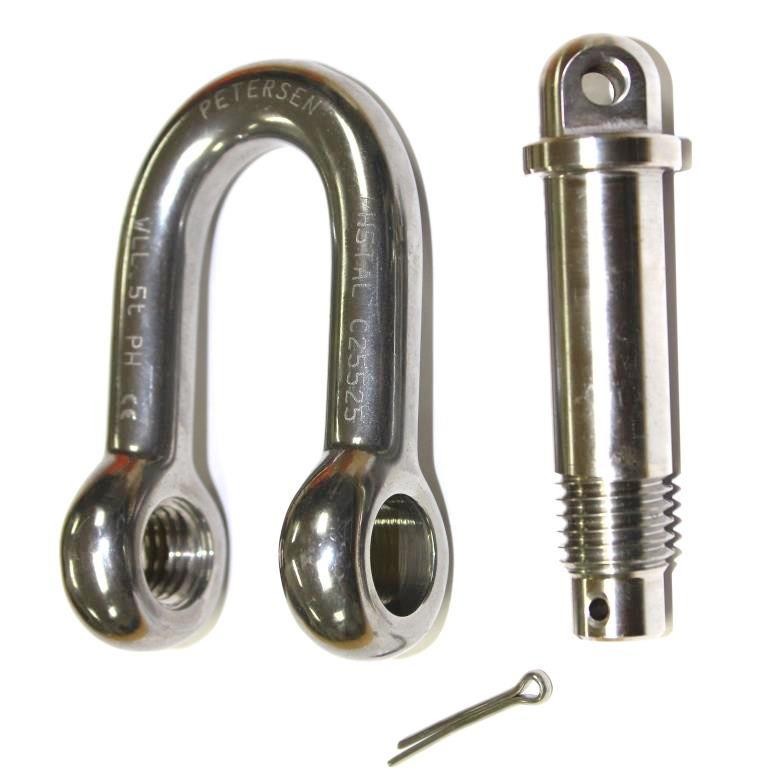

* Drop-forged c/w Cotter Pin

* Proof loaded to 2 x WLL

* Safety Factor 6:1

* BS EN 10204.3

Markings: CE, Identification Number, Rating, Brand,

$22.00

each

Rating

Clear

Check Out

More information:

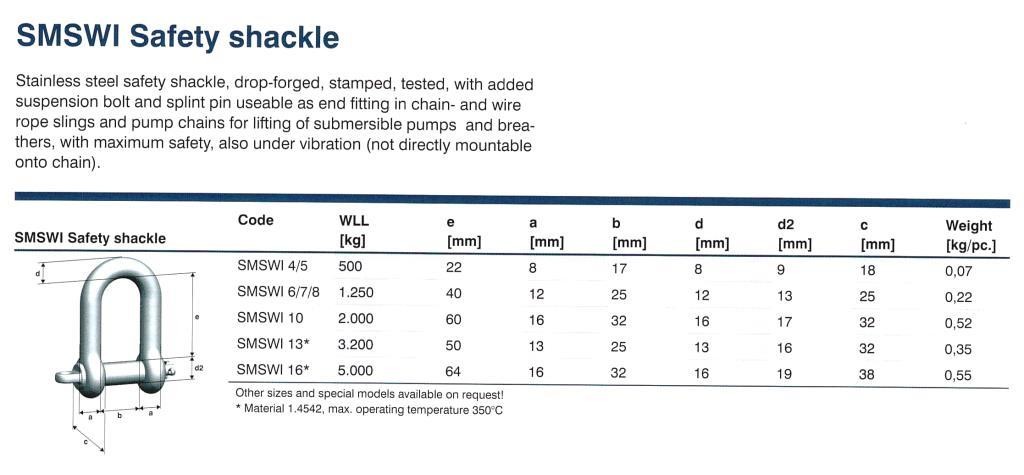

NOTE: 5.0T Dimension Options…

SMALL – 19mm Pin, 33mm Inside Width, 62mm Inside Length

STANDARD – 29mm Pin, 55mm Inside Width, 107mm Inside Length

Used as end fitting in chain- and wire rope slings and pump chains for lifting of submersible pumps and breathers, with maximum safety, also under vibration (not directly mountable onto chain).
