Roundsling - 35T Titan Orange

Roundsling - 35T Titan Orange

Ref:
SKU: RS3515E Category:

TiTAN BIG LIFT ENDLESS SLINGS


* Certification to AS4497

* Unique Identification Number.

* All slings are made from 100% Polyester.

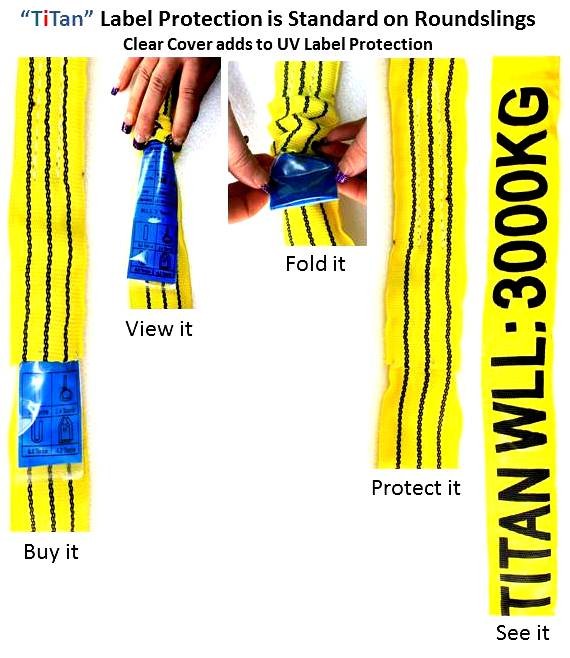

* WLL is clearly marked on each sling.

* International Colour Coded.

* Safety Factor 7:1
* Flat 180mm x 32mm
* 350mm Circumference


Refer "DOWNLOAD" for Shackle Choices

$590.00

each

More information:

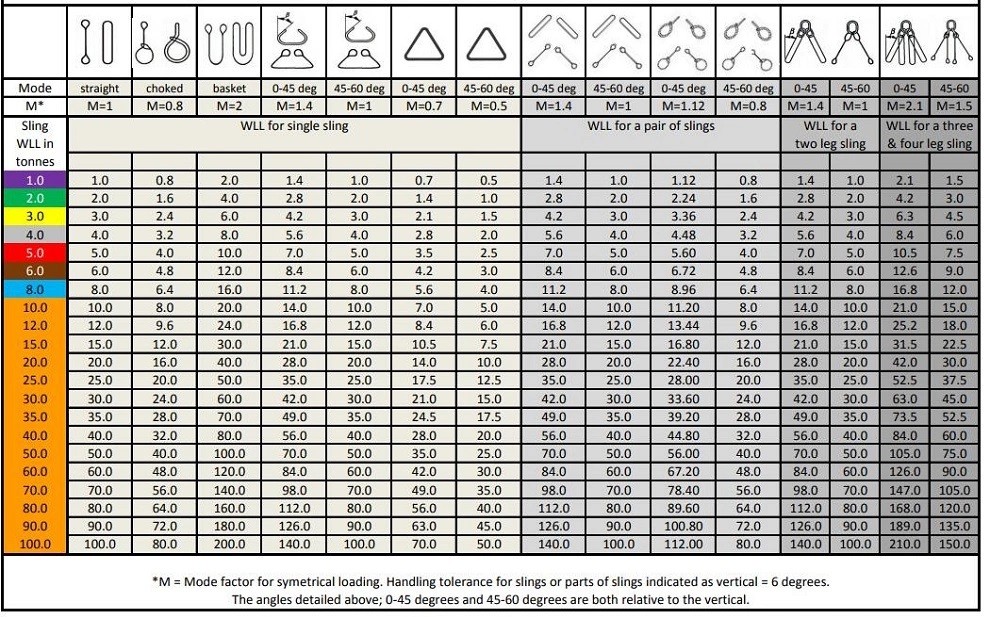

 NOTE: The International Ratings Chart attached works on "external" angels.



New Zealand uses "internal" angels so multi leg ratings 0-45 is 90 Degrees (Factor 2.1)



A 60 Degree 2 leg sling example:  If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.

Based upon this example the 3&4 Leg Load Factor would be 2.6


The Following Must Be Adhered To

* Do not expose to temperatures above 90 or below -40 degrees C

* Do not load in excess of the rated capacity

* Do not drag on the floor or over abrasive surfaces

* Do not twist, shorten, lengthen, or tie in knots

* Do not pull from under loads that are resting on the sling

* Do not repair any damaged sling

* Do not store in chemically active areas, under ultraviolet light or near heat

* Always protect from sharp edges and corners or abrasive surfaces

* Always inspect before each use

* Always ensure the correct sling is being used for the application

Additional Information:
12m Sling 119kg

A estimate would be that when lifting a flat surface the roundsling would spread to approx 180mm and a thickness of approx 40mm

TOLERANCE:

In accordance with AS4497.1, Roundslings shall have an accuracy of +/- 3% of the nominal length expressed in metres.



WARNING:

Corners with a radius of less than three times the compressed thickness of the sling material are deemed to be sharp.

The Radious is half the Diameter and must be a minimum of times 3 for roundslings.




Sling Weights
35T Roundsling 1.5m (Approx 18kg)
35T Roundsling 3m (Approx 35kg)
35T Roundsling 6m (Approx 65kg)
35T Roundsling 8m (Approx 88kg)
35T Roundsling 10m (Approx 110kg)

Downloads:

Shackles with Roundslings Van Beest.pdf

Sling Chart Angle Ratings.jpg

Sling & Shackle Chart V.B.pdf

Titan Roundsling Dimension & Rating.jpg
