G100 Lifting Chain – Winner 200

REF: WIN 8 200

$30.00

Each

Chain Size

Clear

Each

Stamped On Chain

* Pewag Brand/Logo

* Country of Manufacture “Austria”

* Grade of Chain “On Every Link”

* “Stamped Batch Number”

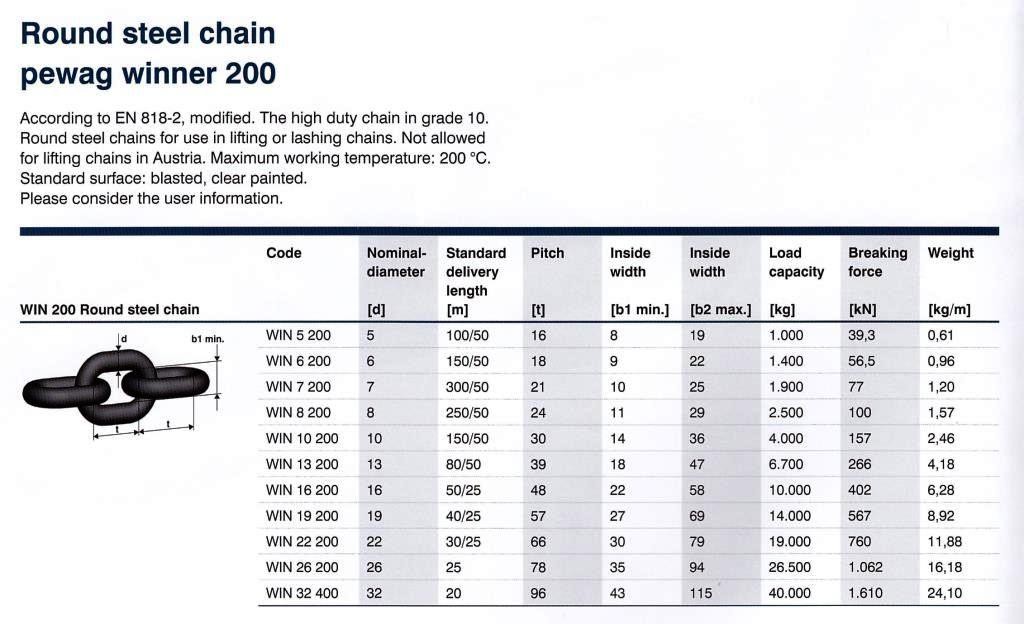

* Round steel chain for lifting or lashing use.
* Maximum working temperature: -40 to 200 °C
* Standard surface: blasted, clear painted

* Standards EN 10204 3.1

If Size Not Available Go To “THIELE” Section

(Top Quality from Germany)

Sold Per Full Metre

G100 Chain

Name: G100 Lifting Chain - Winner 200
SKU: WIN 8 200
Availability: BackOrder

Check chain length is correct, as once we cut the chain there is “No Credit” or “Refund“

NOTE: All chain is cut to leg length “MINUS” one link. We only sell per “FULL” metre.

If you want a 2.5m leg then choose 3.0m length and advise us however you will be charged the 3.0m price….

Bulk Pack Lengths: 13mm x 100m Create, 19mm x 50m Create, 20mm x 50m Create

WINNER 200 Series – Max Temperasture Range 200 Degrees Manufacture within Torrence..

Note: 19mm Chain 14.0T WLL Actual Dia 20mm

20mm Chain 16.0T WLL Actual Dia 21mm

Downloads:

Winner 200 Operation Manual.pdf

Weight	1.6 kg

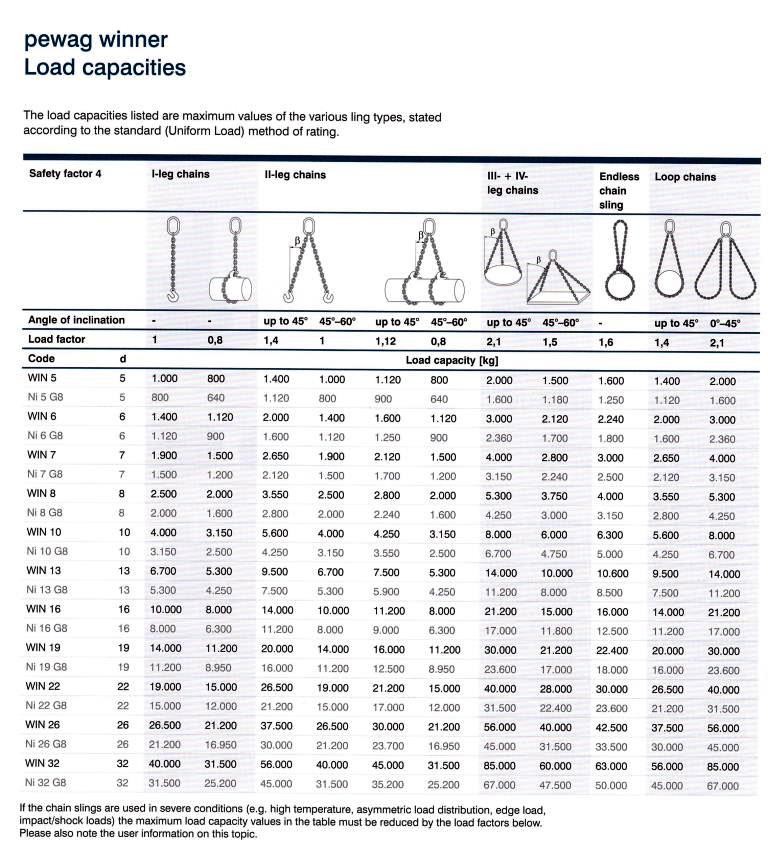

Chain Size	10mm 4.0T WLL, 13mm 6.7T WLL, 19mm 14.0T WLL, 20mm 16.0T WLL, 22mm 19.0T WLL, 26mm 26.5T WLL, 32mm 40.0T WLL, 8mm 2.5T WLL
