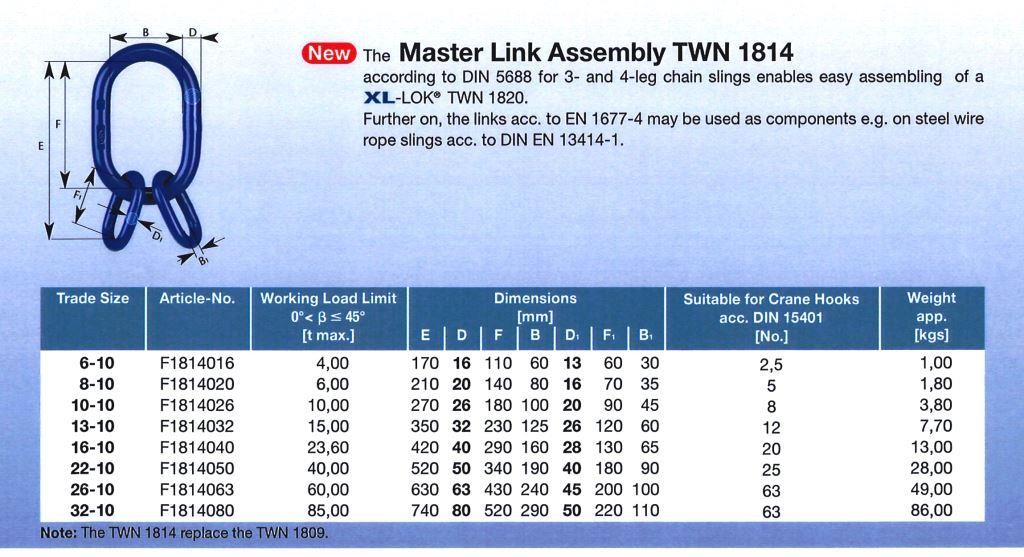

All New Thiele Multi Rings will be TWN 1814
Angle WLL Limits – Confirmed by THIELE
60 Deg Internal 1.7 Factor
90 Deg Internal 1.4 Factor
120 Deg Internal 1.0 Factor
Downloads:
Multi Ring G100 – THIELE XL
Multi Ring G100 – THIELE XL
$158.00
Each
Each
Superior XL by THIELE
* Made in Germany
* Standards DIN5688, DIN15401 EN12195-3
* High Quality Grade 100
* 100% Crack Tested
* Approved “H4“
Ratings are 3Leg & 4Legs @ 90 Degrees
| Weight | 1.9 kg |
|---|---|
| Size / Rating | 10mm 3-4Leg 8.0T @ 90Deg, 13mm 3-4Leg 14.0T @ 90Deg, 16mm 3-4Leg 21.2T @ 90Deg, 22mm 3-4Leg 40.0T @ 90Deg, 8mm 3-4Leg 6.0T @ 90Deg |
