For Product Certification go to CODITRACER on: https://portal.coditracer.com/
For MAXIMUM Rating click on “DOWNLOAD” Box and pick “Straight Lift Chart
Downloads:

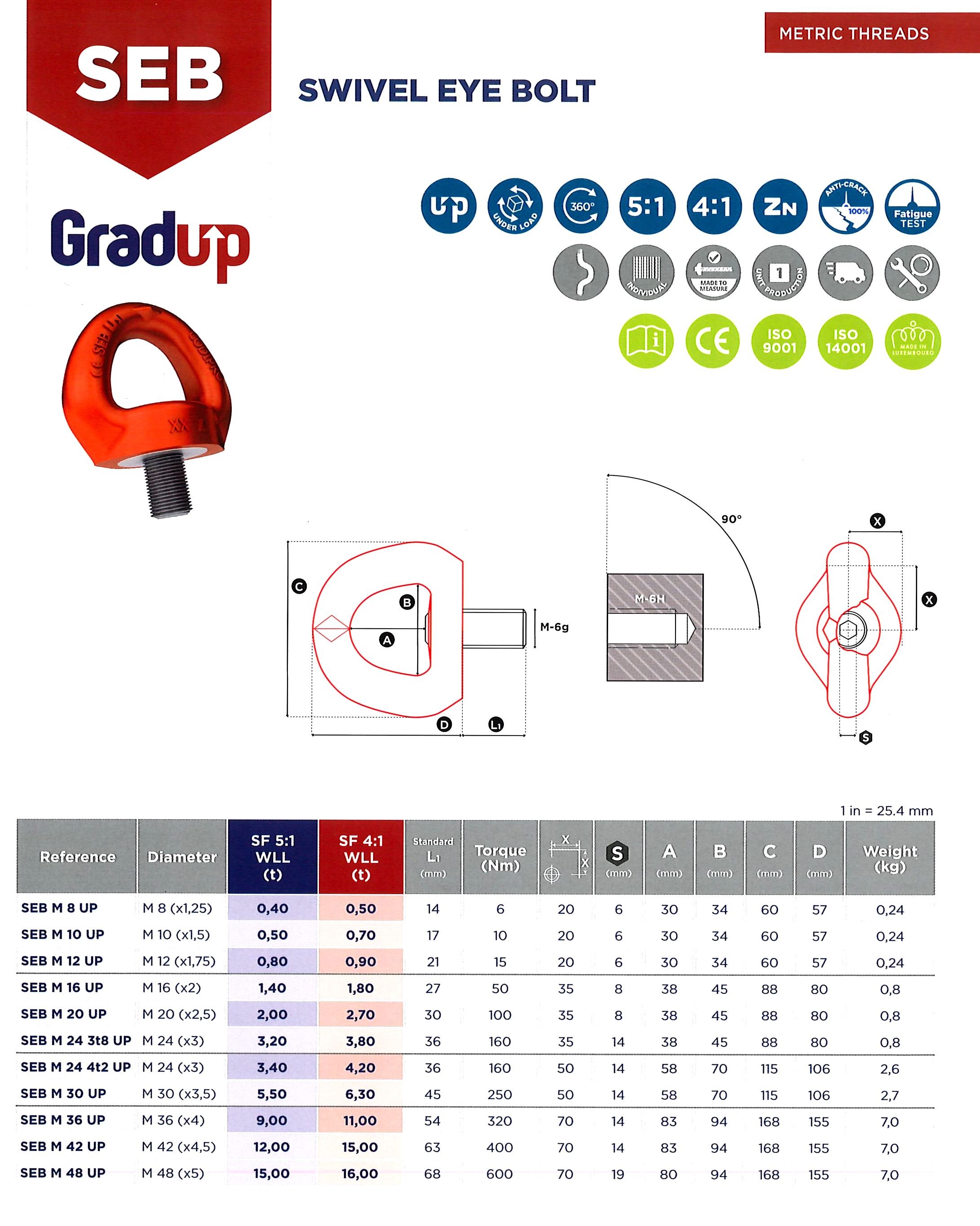

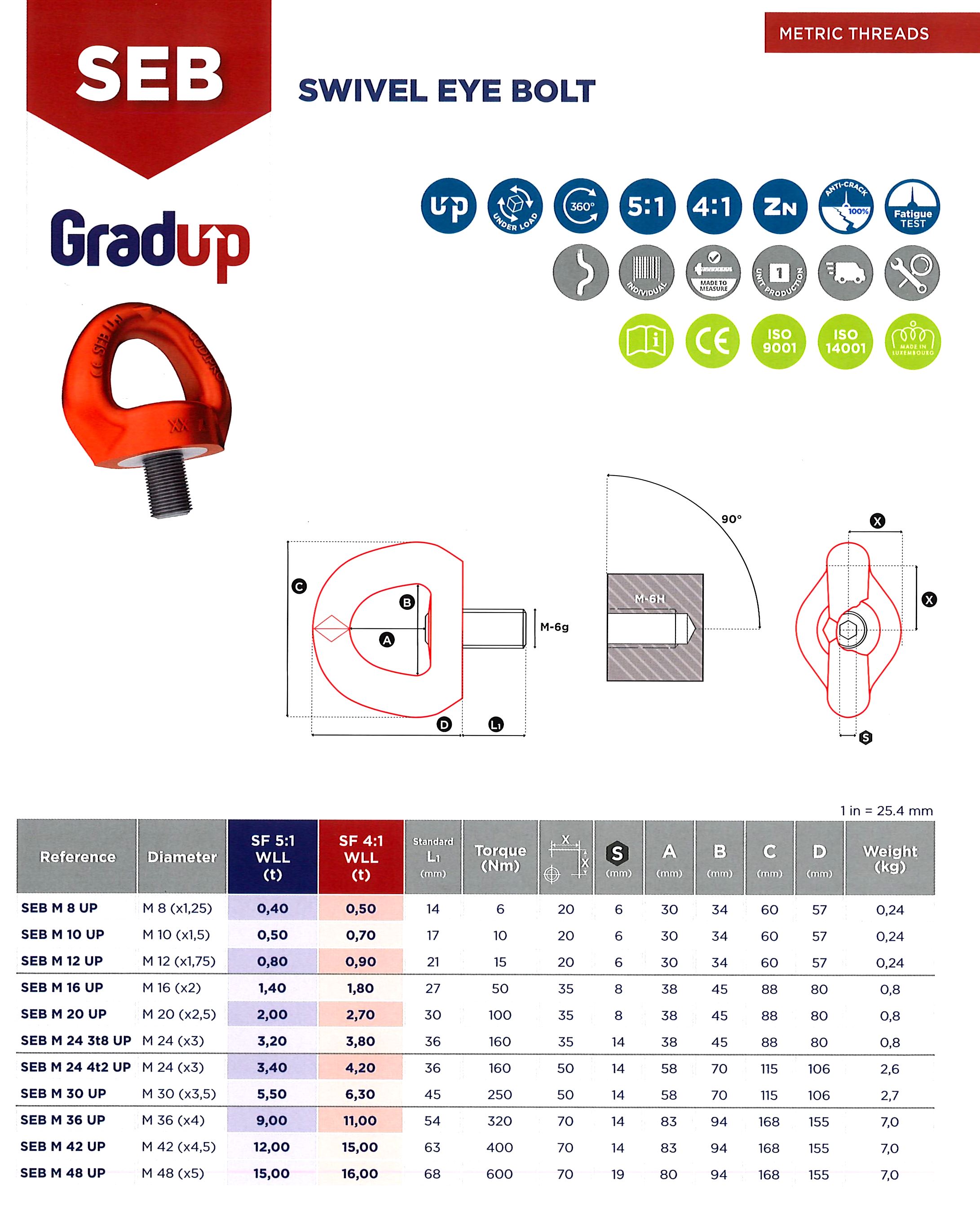

SEB Metric Grade Up Chart 1.2018.jpg
Metric Swivel Lift Eye – Codipro GradUp
Metric Swivel Lift Eye – Codipro GradUp
$158.00
Each
Each
* Unique Identification
* Manufactured “Inhouse” Luxembourg
* International Standards EN1677-1
* Full Factory Traceability
* Certificate supplied with Product
* Huge 5:1 Safety Factor
* 360 Degree Under Load
* Listed WLL at 0 & 90 Degrees
CODIPRO Manufacturer 7 Year Warranty
| Weight | 0.25 kg |
|---|---|
| Rating & Thread | 0.40T WLL / M8 L14mm x 1.25mm, 0.50T WLL / M10 L17mm x 1.5mm, 0.80T WLL / M12 L21mm x 1.75mm, 1.40T WLL / M16 L27mm x 2.0mm, 12.0T WLL / M42 L63mm x 4.5mm, 15.0T WLL / M48 L68mm x 5.0mm, 2.0T WLL / M20 L30mm x 2.5mm, 3.4T WLL / M24 L36mm x 3.0mm, 5.5T WLL / M30 L45mm x 3.5mm, 9.0T WLL / M36 L54mm x 4.0mm |
