For Product Certification go to CODITRACER on: https://portal.coditracer.com/
Downloads:

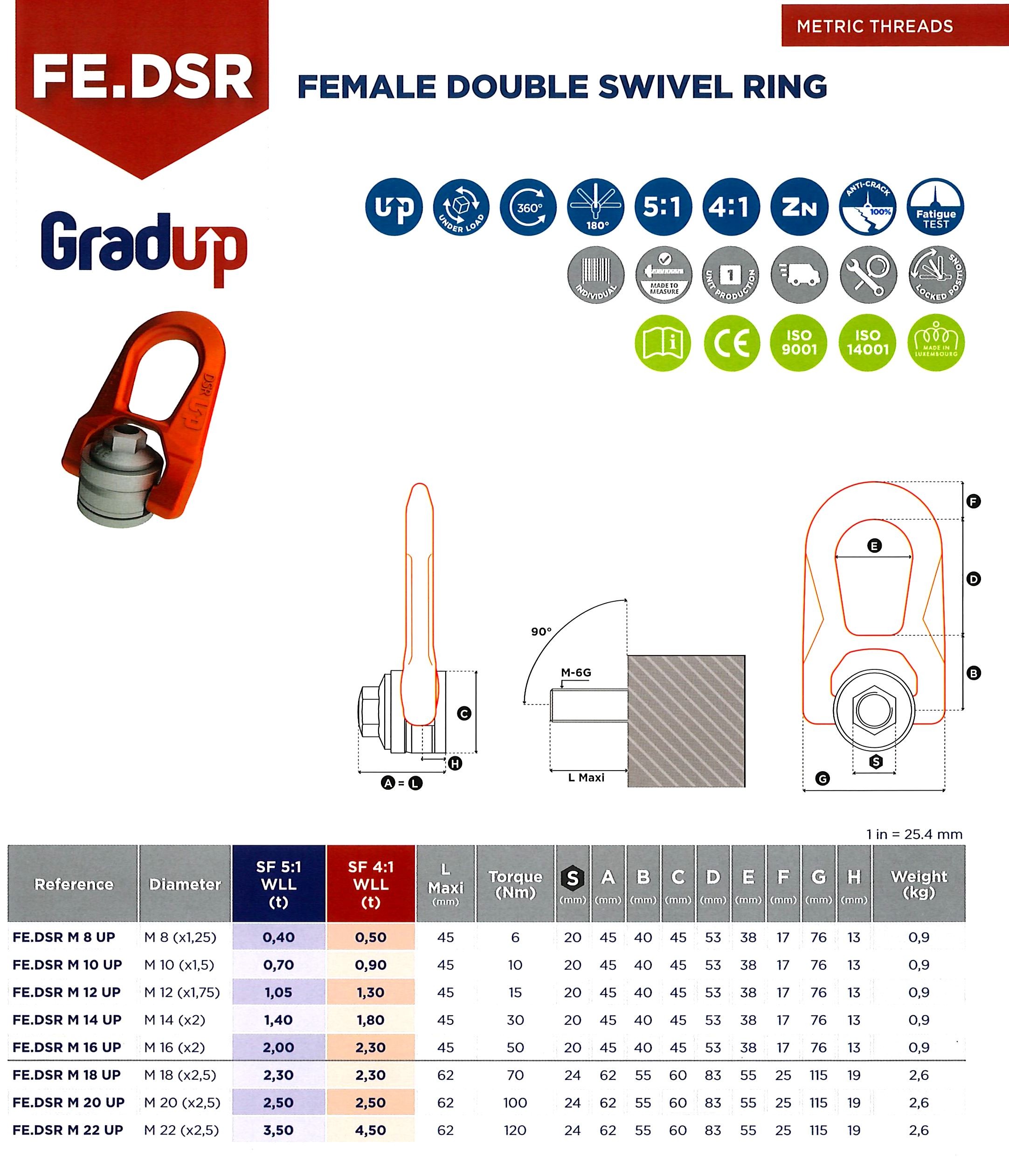

DSR Straight Lift Rating Chart.pdf
Metric Double Swivel Ring Nut
Metric Double Swivel Ring Nut
$303.00
Each
Each
* Unique Identification
* Manufactured “Inhouse” Luxembourg
* International Standards EN1677-1
* Full Factory Traceability
* Certificate supplied with Product
* Huge 5:1 Safety Factor
* 180 Degree Pivot Under Load
* 360 Degree Swivel Under Load
* Listed WLL at 0 & 90 Degrees
| Weight | 1 kg |
|---|---|
| Size / Rating | M10 – 700KG WLL (5:1 S/F), M12 – 1,050KG WLL (5:1 S/F), M14 – 1,400KG WLL (5:1 S/F), M16 – 2,000KG WLL (5:1 S/F), M18 – 2,300KG WLL (5:1 S/F), M20 – 2,500KG WLL (5:1 S/F), M22 – 3,500KG WLL (5:1 S/F), M8 – 400KG WLL (5:1 S/F) |
