Metric Collard Eye Bolt – ZP Din580

Name: Metric Collard Eye Bolt - ZP Din580
SKU: CEB-M6DYZP
Availability: InStock

Metric Collard Eye Bolt – ZP Din580

Ref:

SKU: CEB-M6DYZP Categories: Metric DIN580 & 582, Eye Bolt & Eye Nut

Zinc Plated

Complies with DIN 580

Material: C15

Marked with Thread Type, Size, Rating, Batch No.

$3.00

each

Size Options

Clear

Check Out

More information:

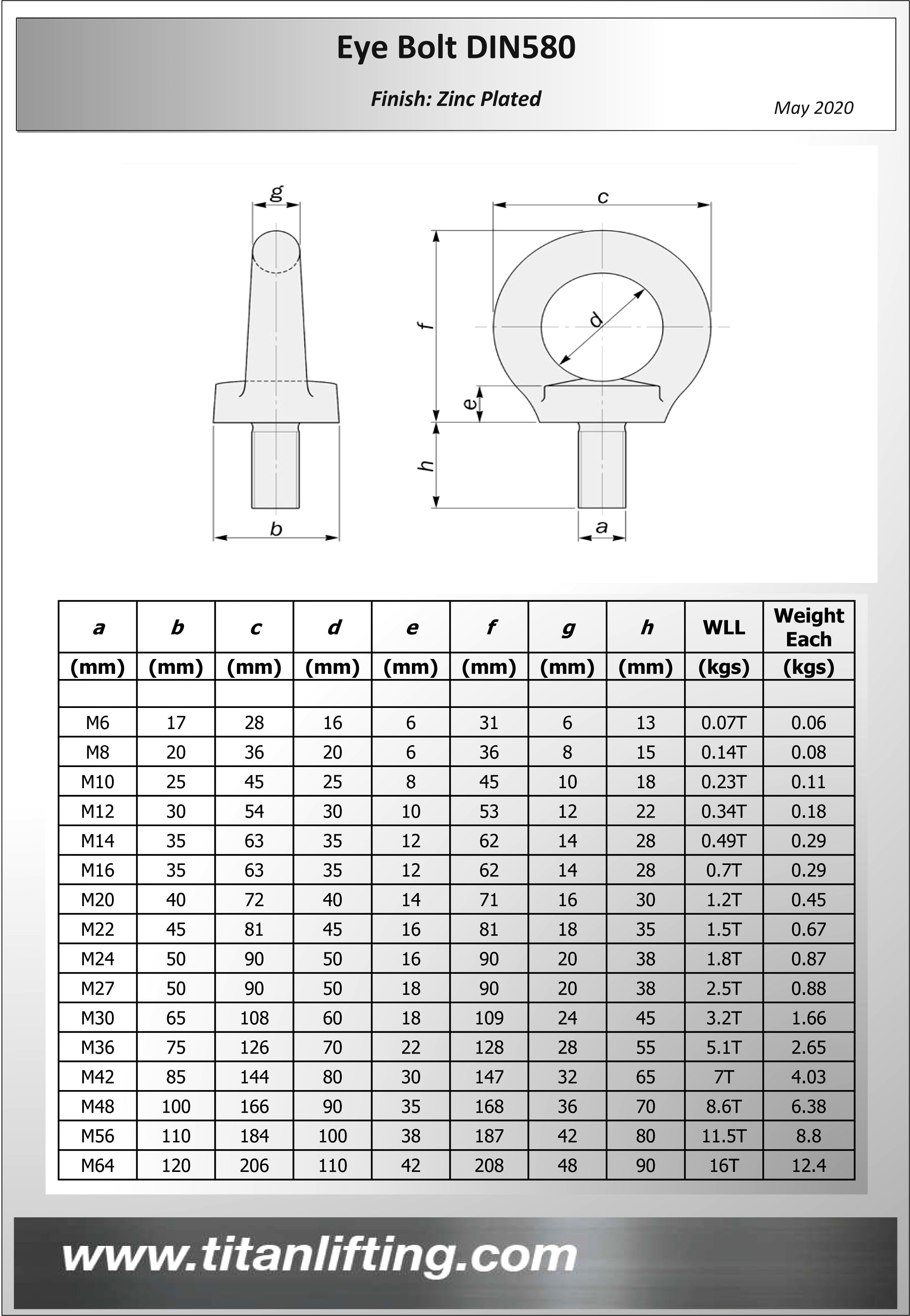

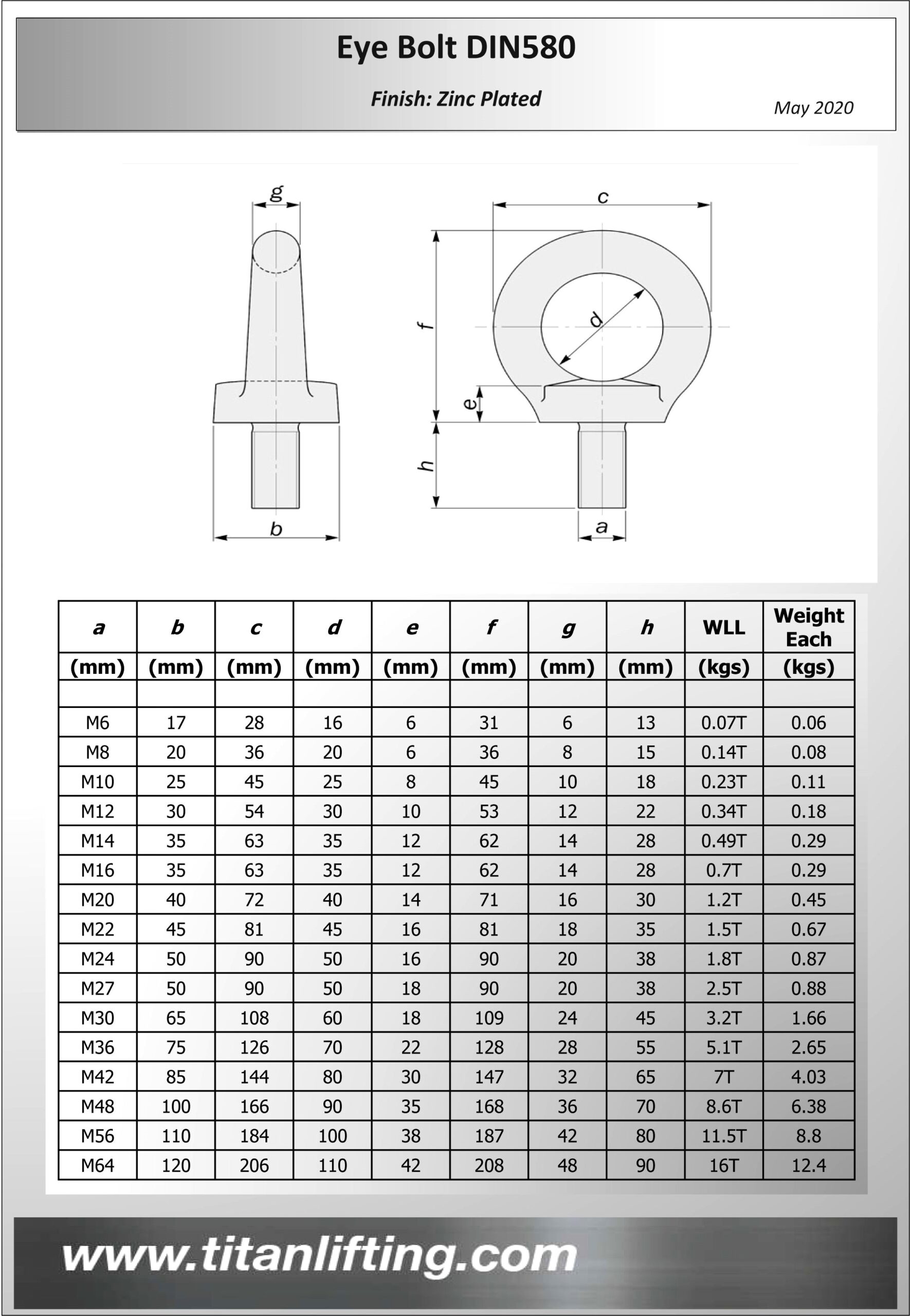

Rating / Eye Diameter

M6 0.07T (70KG) WLL – Eye 15mm ID

M8 0.14T WLL – Eye 20mm ID

M10 0.23T WLL – Eye 25mm ID

M12 0.34T WLL – Eye 30mm ID

M14 0.49T WLL – Eye 35mm ID

M16 0.70T WLL – Eye 35mm ID

M20 1.20T WLL – Eye 40mm ID

M24 1.80T WLL – Eye 50mm ID

M27 2.50T WLL – Eye 50mm ID

M30 3.20T WLL – Eye 60mm ID

M36 5.10T WLL – Eye 70mm ID

M42 7.00T WLL – Eye 80mm ID

M48 8.60T WLL – Eye 90mm ID
