Name: Master Ring - Thiele TWN0808 GK8
SKU: F0808088
Availability: BackOrder

Master Ring – Thiele TWN0808 GK8

REF: F0808088

$39.00

Each

Size / Rating

Clear

Each

Top Quality GK8

* Made in Germany

* International Standards EN1677

* High Quality Grade 80

* Chart WLL Ratings are 2Leg @ 90Deg

Master Ring WLL Ratings..

8mm Ring – 1Leg 2.00T or 2Leg 2.80T WLL @ 90Deg

10mm Ring – 1Leg 3.15T or 2Leg 4.25T WLL @ 90Deg

13mm Ring – 1Leg 5.30T or 2Leg 7.50T WLL @ 90Deg

16mm Ring – 1Leg 8.00T or 2Leg 11.2T WLL @ 90Deg

20mm Ring – 1Leg 12.5T or 2Leg 17.0T WLL @ 90Deg

22mm Ring – 1Leg 15.0T or 2Leg 21.2T WLL @ 90Deg

26mm Ring – 1Leg 21.2T or 2Leg 30.0T WLL @ 90Deg

28mm Ring – 1Leg 25.0T or 2Leg 33.5T WLL @ 90Deg

32mm Ring – 1Leg 31.5T or 2Leg 45.0T WLL @ 90Deg

36mm Ring – 1Leg 40.0T or 2Leg 56.0T WLL @ 90Deg

40mm Ring – 1Leg 50.0T or 2Leg 71.0T WLL @ 90Deg

45mm Ring – 1Leg 63.0T or 2Leg 90.0T WLL @ 90Deg

Downloads:

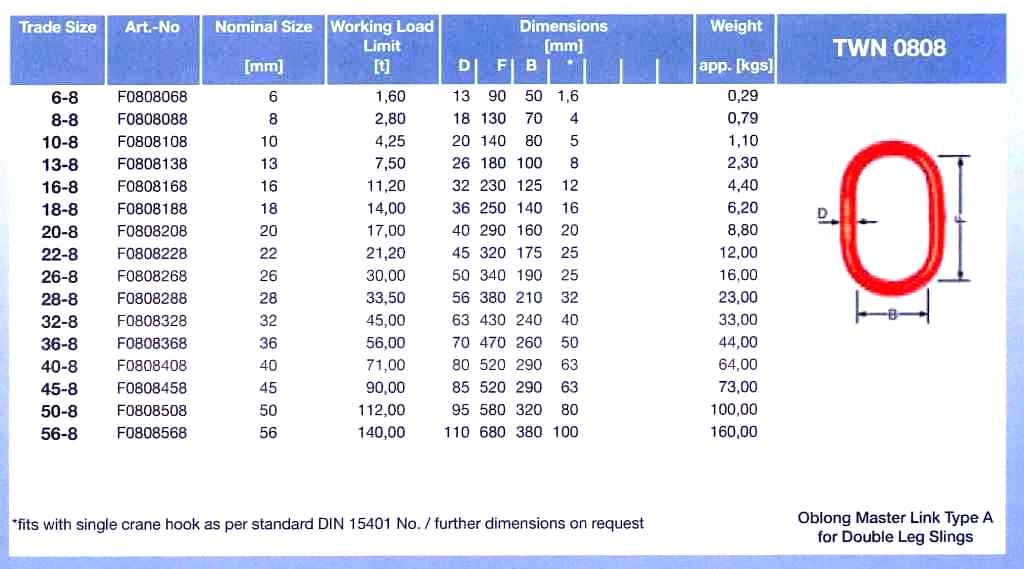

Thiele TWN0808 Spec.jpg

Weight	1 kg
Size / Rating	10mm – 4.25T @ 90Deg, 13mm – 7.5T @ 90Deg, 16mm – 11.2T @ 90Deg, 20mm – 17.0T @ 90Deg, 22mm – 21.2T @ 90Deg, 26mm – 30.0T @ 90Deg, 28mm – 33.5T @ 90Deg, 32mm – 45.0T @ 90Deg, 36mm – 56.0T @ 90Deg, 40mm – 71.0T @ 90Deg, 45mm – 90.0T @ 90Deg, 8mm – 2.8T @ 90Deg
