Angle WLL Limits – Confirmed by THIELE
60 Deg Internal 1.7 Factor
90 Deg Internal 1.4 Factor
120 Deg Internal 1.0 Factor
Downloads:
Master Ring G100 – THIELE NEW XL
Master Ring G100 – THIELE NEW XL
$33.00
Each
Each

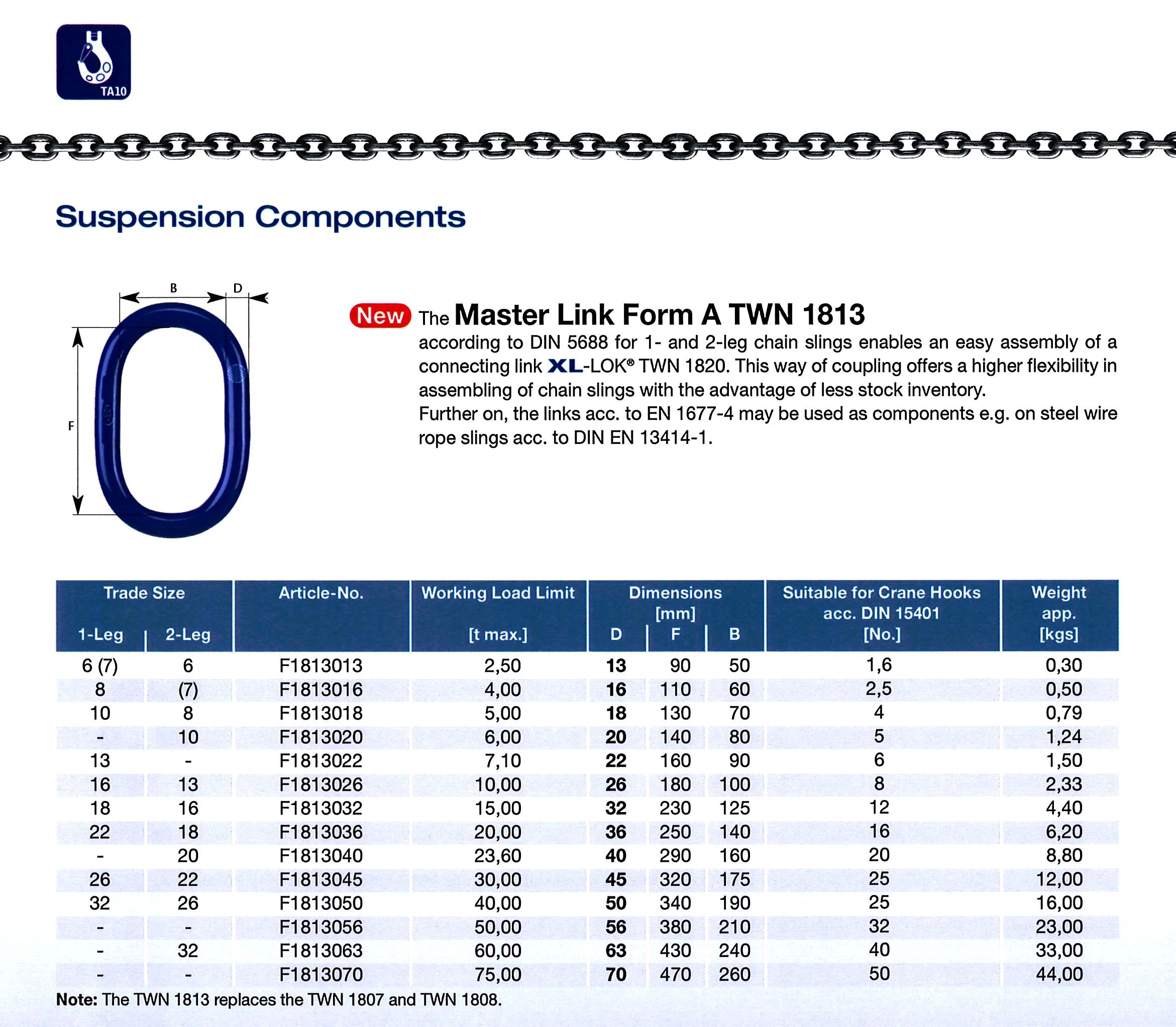

Superior XL by THIELE New TWN1813
* Made in Germany
* Standards DIN5688, DIN15401 EN12195-3
* High Quality Grade 100
* 100% Crack Tested
* Approved “H4“
| Weight | 0.6 kg |
|---|---|
| Size / Rating | 10.0T WLL – 1613, 10mm 5.60T WLL, 15.0T WLL – 1816, 23.6T WLL – 2220, 30.0T WLL – 2622, 4.0T WLL – 0808, 40.0T WLL 32-10, 5.0T WLL – 108, 6.0T WLL – 1010, 7.1T WLL – 1310 |
