Lifting Eye G10 GAMMA

Lifting Eye G10 GAMMA

REF: PLGW 0.3 M8

$109.00

Each
Each



Tool-free assembly and disassembly

The latch does not have any contact with the screw

The latch is kept in position with a patented spring

 * Individual Identification Traceability

 * 360 Degree Rotation

 * High Grade 10.9 Crack Tested Bolt

It is 360° rotatable, contains a patented and interchangeable special screw, which is 100% crack-tested as well as covered with a
chrome VI-free finish-protection against corrosion and marked with WLL and thread size. Each lifting point is marked with an individual serial number, that allows traceability.

Downloads:

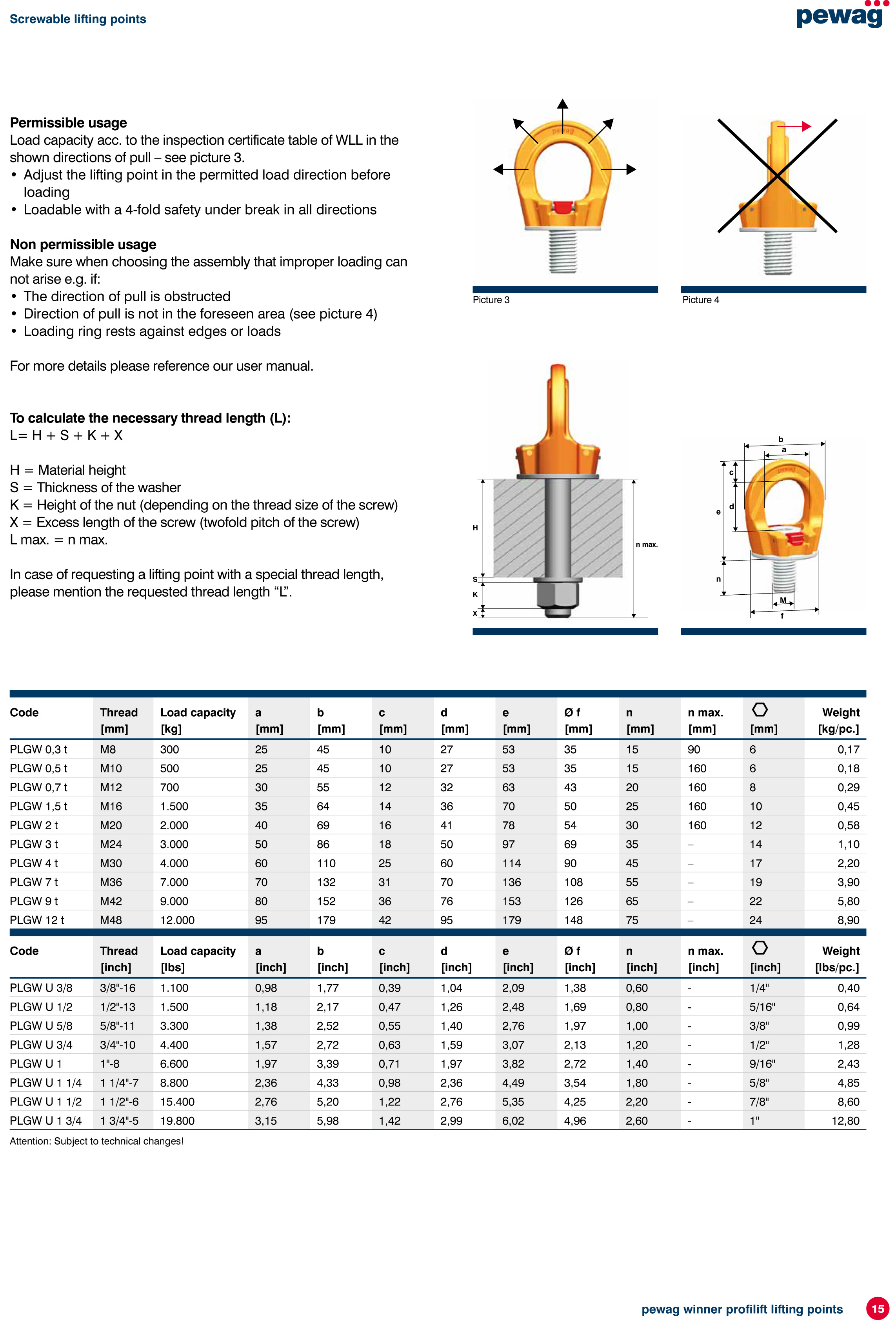

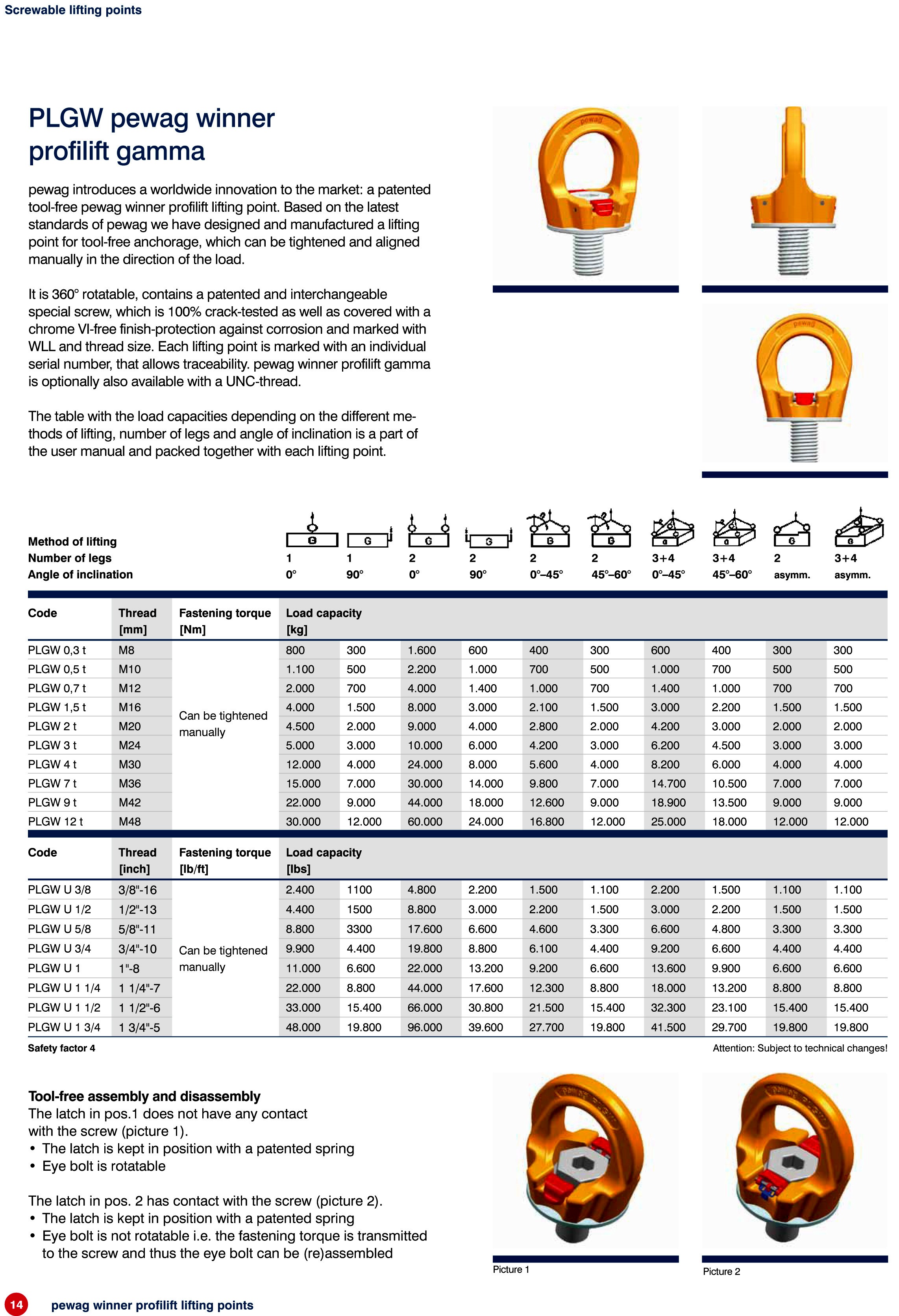

Pewag Gamma Tech.jpg

Pewag Gamma Dimensions.jpg

Gamma M12 PO.761 10.2013.pdf

Gamma M16 PO.761 10.2013.pdf

Gamma M24 PO.761 10.2013.pdf

Pewag PLGW 0.7T M12.PDF

Pewag PLGW 1.5T M16.PDF

Pewag PLGW 3.2T M24.PDF

Weight 0.2 kg
Size Options

M10 x 15mm 500kg WLL, M12 x 20mm 700kg WLL, M16 x 25mm 1.5T WLL, M20 x 30mm 2.0T WLL, M24 x 35mm 3.0T WLL, M30 x 45mm 4.0T WLL, M36 x 55mm 7.0T WLL, M42 x 65mm 9.0T WLL, M48 x 75mm 12.0T WLL, M8 x 15mm 300kg WLL
