Container Lugs – Camlok Set of 4

Name: Container Lugs - Camlok Set of 4
SKU: CLB
Availability: InStock

Container Lugs – Camlok Set of 4

Ref:

SKU: CLB Categories: Clamp - Camlok UK, G80 - Bolt-On & Clip-On Fitting

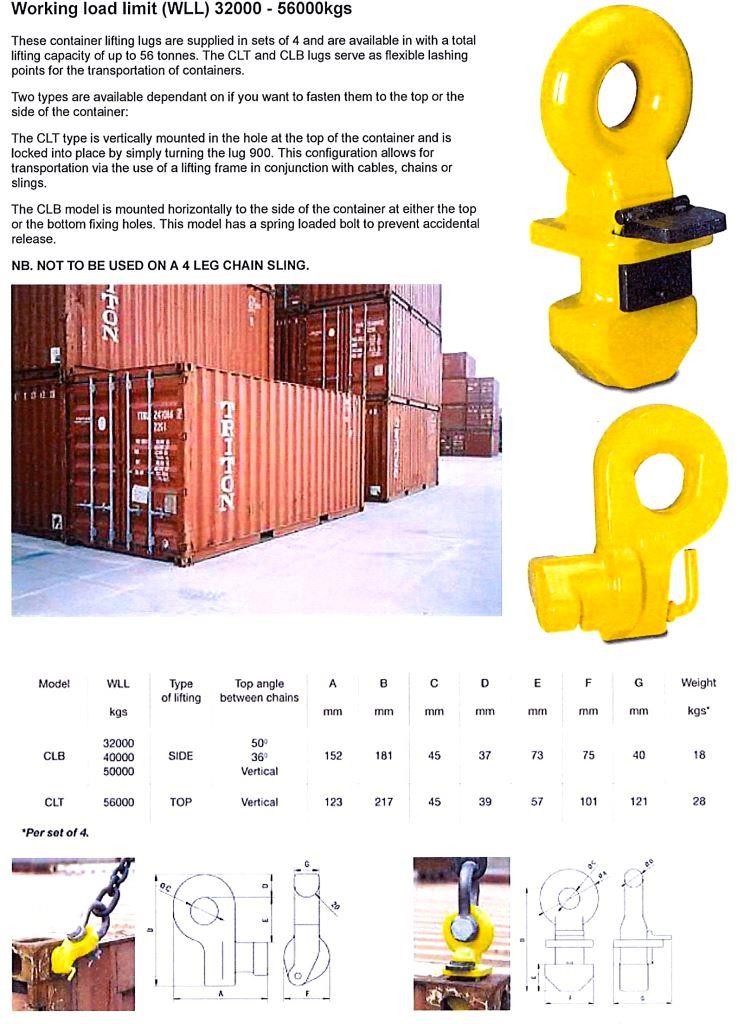

The CLB model is mounted horizontally to the side of the container at either the top or the bottom fixing holes.

This model has a spring loaded bolt to prevent accidental release.

Ratings based on Angle

At Vertical Lift 50T WLL

At 36 Deg Lift 40T WLL

At 50 Deg Lift 36T WLL

Sold Per Set of 4 Lugs (2xLH & 2xRH)

$1,699.00

each

3 in stock

More information:

Requires 22mm G80 Connectors to fit Camlok Eye

Manufactured To Standard BS EN 13155
