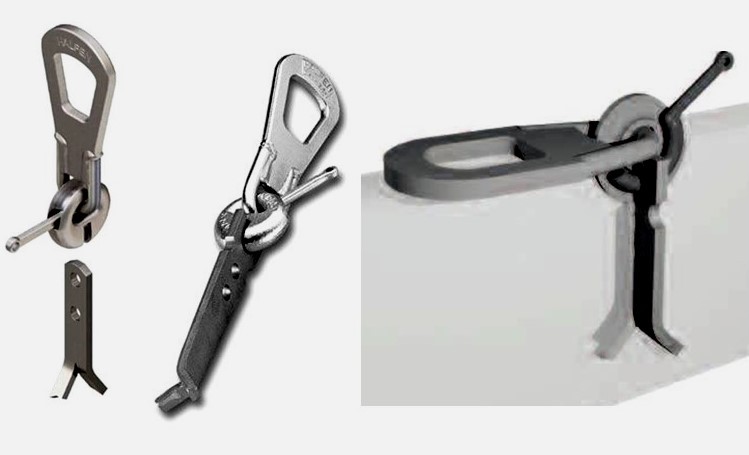

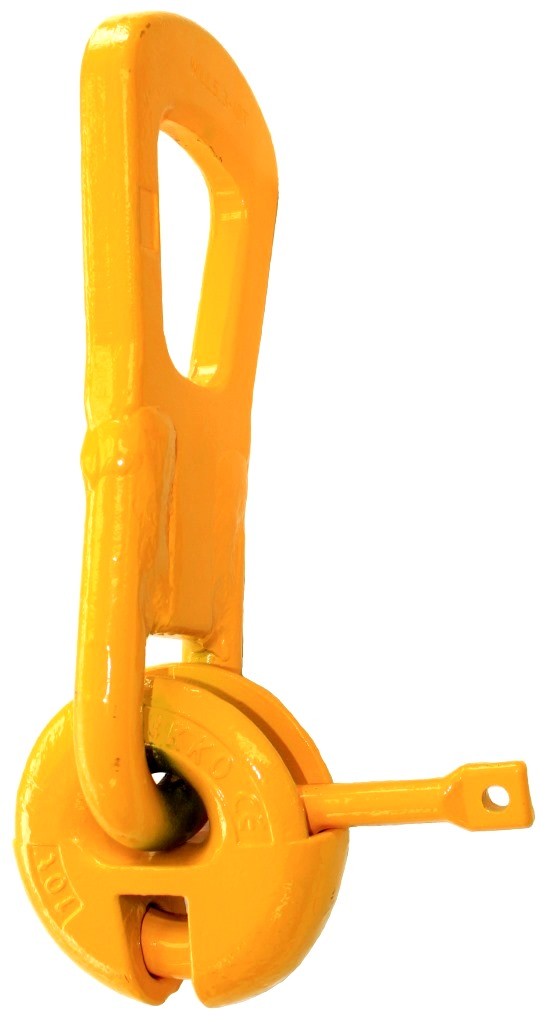

Concrete Lifting Ring Clutch (Formida) – SLR G80

Name: Concrete Lifting Ring Clutch (Formida) - SLR G80
SKU: SLR547-0.7-2.5T
Availability: InStock

Concrete Lifting Ring Clutch (Formida) - SLR G80 - Image 2

Concrete Lifting Ring Clutch (Formida) – SLR G80

Ref:

SKU: SLR547-0.7-2.5T Categories: G80 - SLR Components, Titan Clip On Fittings, G80 - Bolt-On & Clip-On Fitting

Super Cast Alloy Locking Ring

Lifting Ring is Forged Alloy Steel

100% Magnaflux Crack Tested

Yellow Powder Coated Protection

Safety Factor of 5:1

(Reid Formida Type)

$120.00

each

Rating

Clear

Check Out

More information:

Annual Proof Load 1.2 x WLL (AS3850)

Markings on Clutch..

Cast Locking Ring: SLR, CE, A-Z, Rating

Forged Ring: SLR, CE, WLL, Factory Batch No.

Box Quantities: 2.5T / 10, 5.0T / 4,

2.5T Ring Lifting Clutch Minimum Fit: 16mm Connector, 10mm Sling or Safety Hook

5.0T Ring Lifting Clutch Minimum Fit: 22mm Connector, 13mm Sling or Safety Hook

Ring Load Pin Dia : 2.5T / 13mm, 5.0T / 17mm

Please Note;

The 2.5T Ring Clutch will not fit the 1.3T Reid Eye Anchors

The 5.0T Ring Clutches will fit 7.0T Anchors but “MUST NOT” be used over 5.0T WLL
