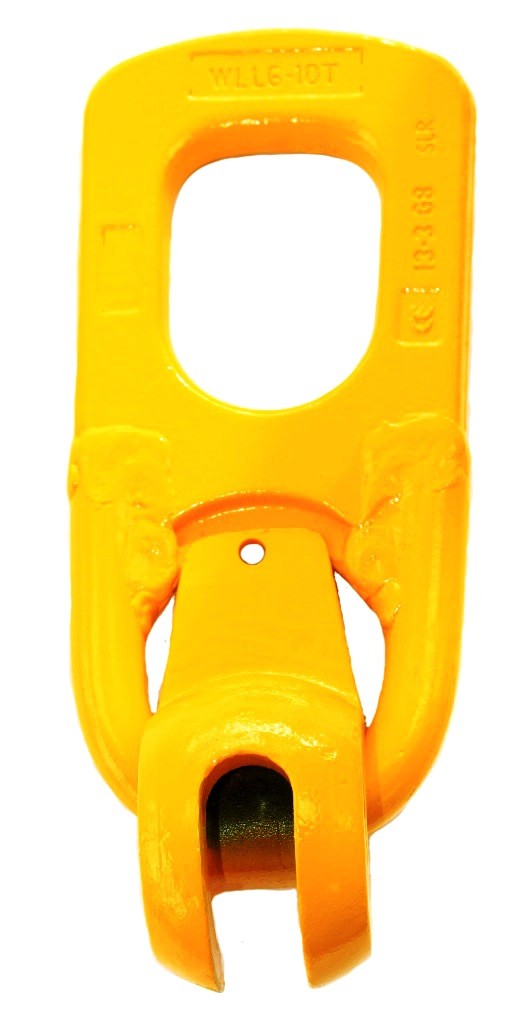

Concrete Lifting Clutch (Swiftlift) – Titan G80

Name: Concrete Lifting Clutch (Swiftlift) - Titan G80
SKU: T617-1.3T
Availability: InStock

Concrete Lifting Clutch (Swiftlift) - Titan G80 - Image 2

Concrete Lifting Clutch (Swiftlift) – Titan G80

Ref:

SKU: T617-1.3T Categories: SLR Lifting Clutches Only, G80 - SLR Components, Titan Clip On Fittings, G80 - Bolt-On & Clip-On Fitting

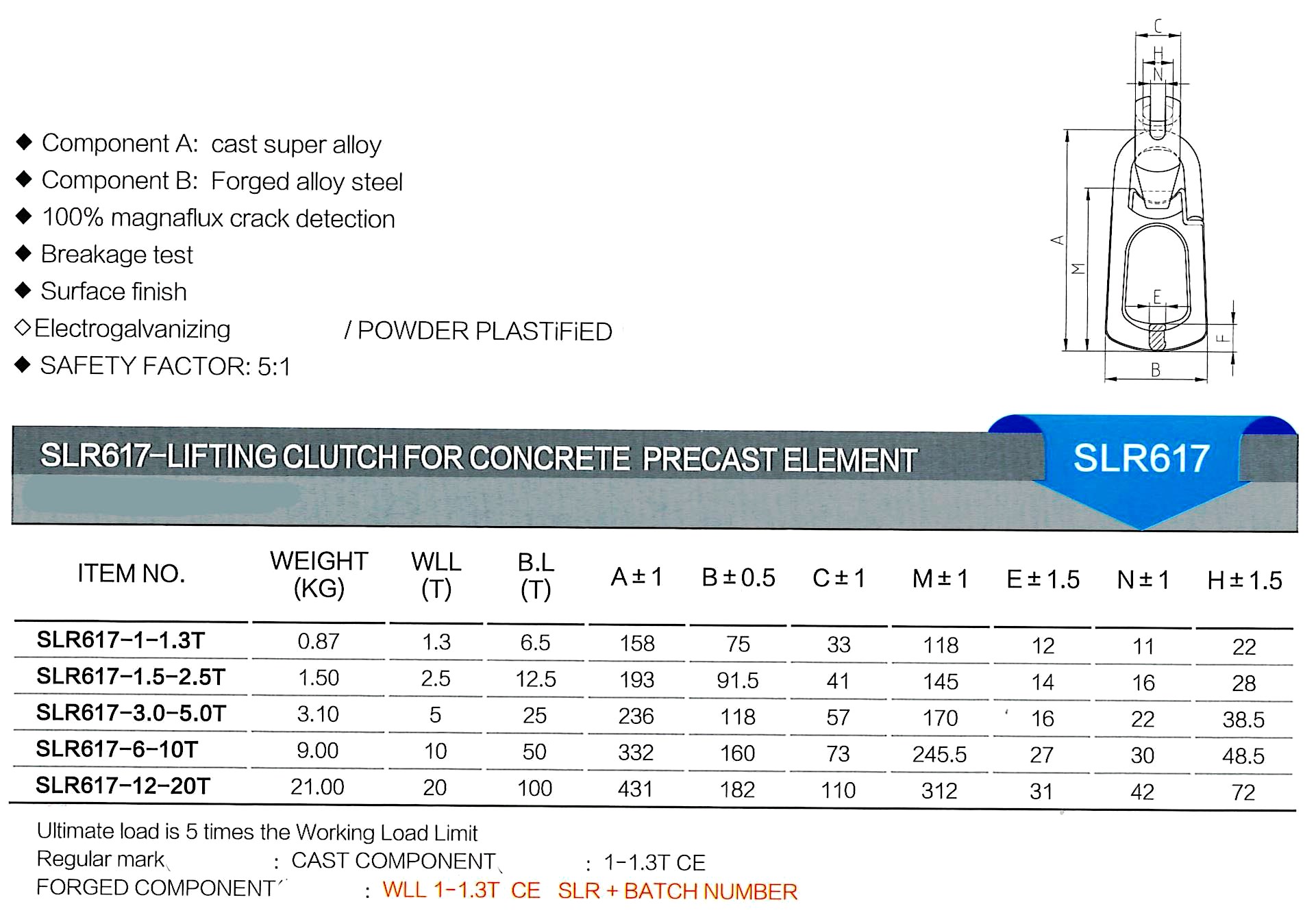

Lifting Anchor Clutch

* Claw Cast Super Alloy

* Lifting Ring Forged Alloy Steel

* 100% Magnaflux Crack Tested

* Powder Coated Protection

* Safety Factor 5:1 (T617 Series)

* Safety Factor 4:1 (SLR101 Series – 20T)

* Supplied with Certification

(Reid Swiftlift Type)

$116.00

each

Rating

Clear

Check Out

More information:

Annual Proof Load 1.2 x WLL (AS3850)

Markings on Clutch..

Cast Claw: CE, Rating

Forged Lifting Ring: TBrand, CE, Working Load LimitBox Quantities: 1.3T / 15, 2.5T / 8, 5.0T / 4, 10T / 2, 20T / 1

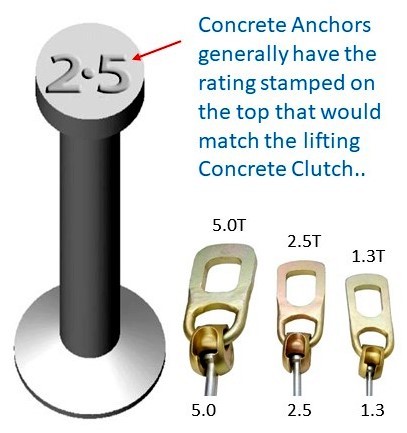

1.3T Clutch Minimum Fit: 7-8mm Connector. 6mm Sling or Safety Hook

2.5T Clutch Minimum Fit: 10mm Connector, 7-8mm Sling or Safety Hook

5.0T Clutch Minimum Fit: 16mm Connector, 10mm Sling or Safety Hook

10.0T Clutch Minimum Fit: 22mm Connector, 13mm Sling or Safety Hook

20.0T Clutch Minimum Fit: 26mm Connector….
