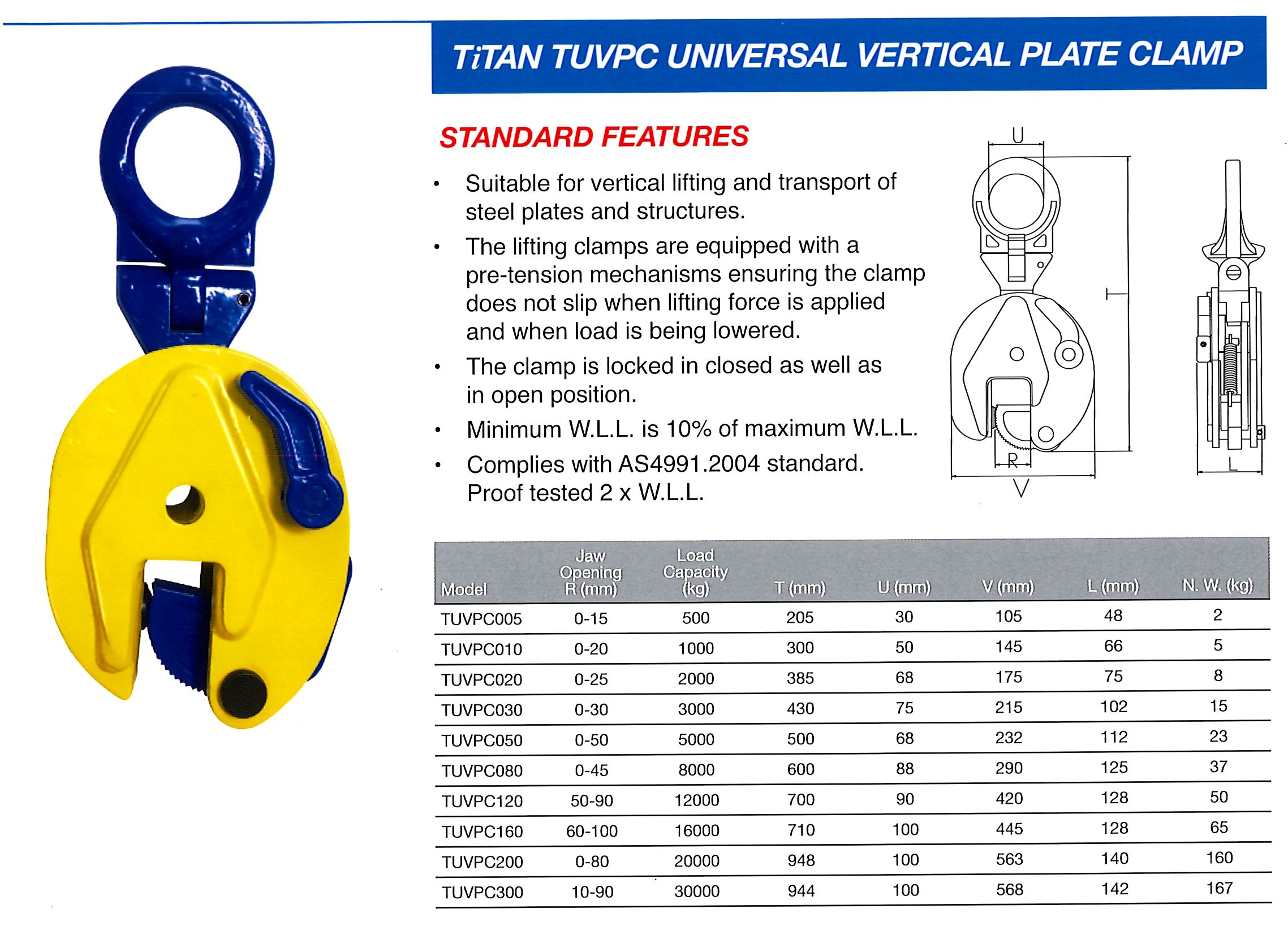

0.5T Clamp Gap Opening 0 to 15mm – 30mm Eye Dia
1.0T Clamp Gap Opening 0 to 20mm – 48mm Eye Dia
2.0T Clamp Gap Opening 0 to 25mm – 68mm Eye Dia
3.0T Clamp Gap Opening 0 to 30mm – 74mm Eye Dia
5.0T Clamp Gap Opening 0 to 50mm – 80mm Eye Dia

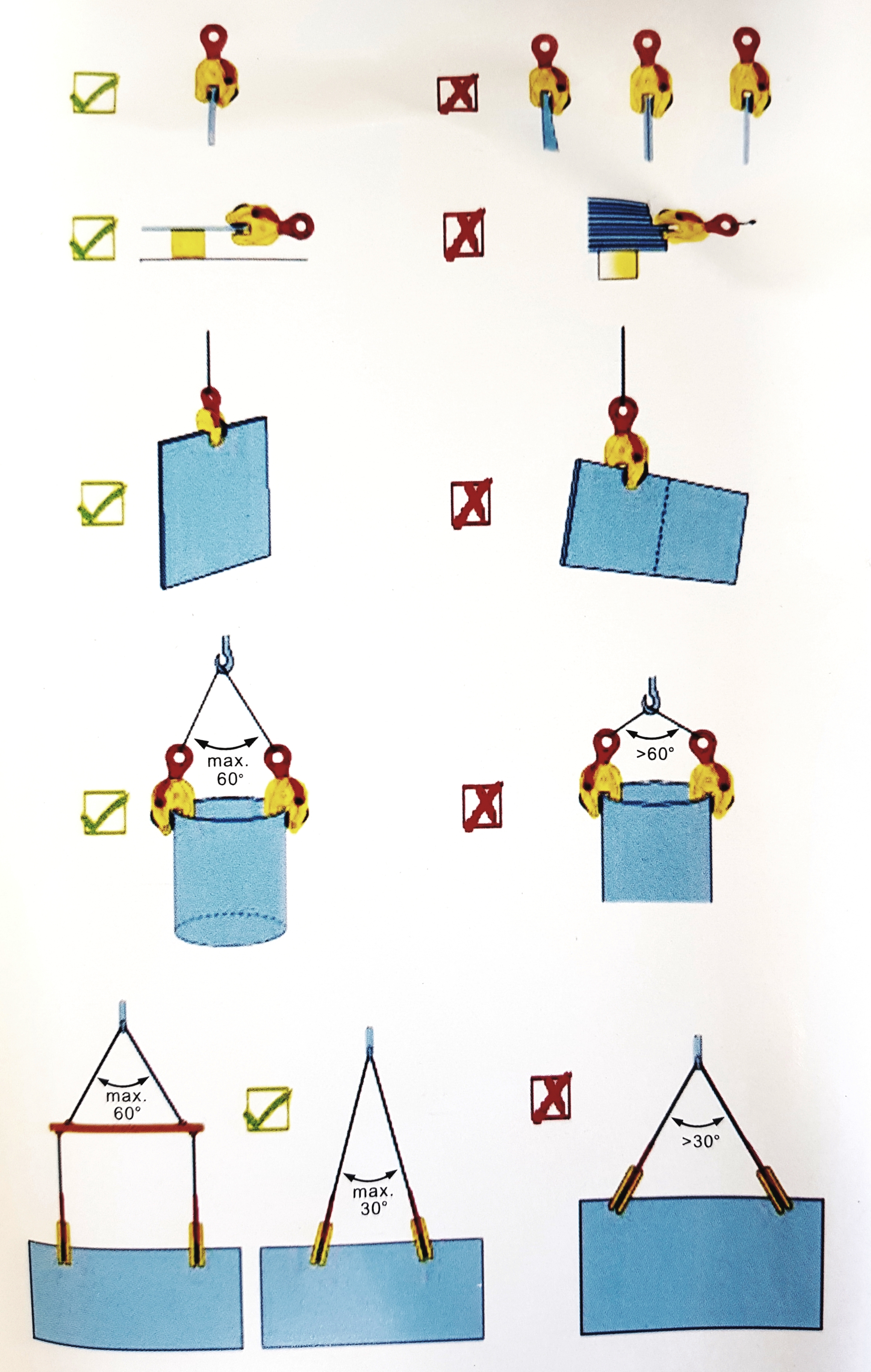

Safety WARNING
* Never Exceed the Capacity of the Clamp
* Minimum Working Load of 10% of the Rated Capacity of the Clamp
Titan Plate Clamps are manufactured to handle steel plates not exceeding 300 Brinell Hardness or 32 Rockwell.
Do not Lift plates with coastings or mill scale that prevent the gripping of the surfaces of the clamp from making positive contact with the base metal.
Packaging…
These items are to large for Courier Bags…
Downloads:

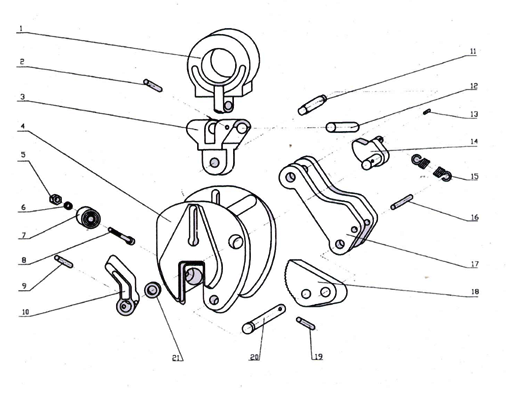

PART LIST OF PCD CLAMP 11.2018.png
