Chain - Calibrated Short-Link Anchor DIN766

Name: Chain - Calibrated Short-Link Anchor DIN766
SKU: CDIN6X18
Availability: InStock

Chain - Calibrated Short-Link Anchor DIN766

Ref:

SKU: CDIN6X18 Category: Din 766 Chain

Hot Dipped Galvanized

Top Quality Chain from China's Best Manufacture of Chain for International Markets over the past 40 years..

6mm x 18mm (1.00kg/mtr)

7mm x 21mm (1.10kg/mtr)

8mm x 24mm (1.40kg/mtr)

10mm x 28mm (2.3kg/mtr)

$13.40

each

Chain Size

Clear

More information:

Check chain length is correct, as once we cut the chain there is "No Credit" or "Refund"

NOTE: All chain is cut to leg length "MINUS" one link. We only sell per "FULL" metre.

If you want a 2.5m leg then choose 3.0m length and advise us however you will be charged the 3.0m price....

Our Din766 Calibrated Anchor Chain has a simular breaking load as both Grade 30 & Grade L Anchor Chains

Refer "BULK" for full drum prices..

6mm - 100m / 625m

7mm - 100m / 448m

8mm - 100m / 351m

10mm - 213m

Downloads:

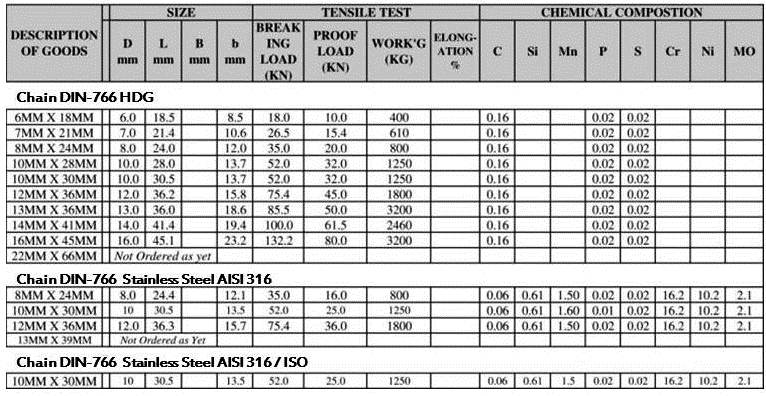

Chain Din766 Spec.jpg

Cert Din766 7x21 2.2013.pdf

Cert Din766 8x24 2.2013.pdf

Cert Din766 10x28 2.2013.pdf

DIN766 6mm PO.550 10.2013.pdf

DIN766 7mm PO.550 10.2013.pdf

DIN766 8mm PO.550 10.2013.pdf

DIN766 10mm PO.550 10.2013.pdf

AMG Quality Warranty.doc
