Camlok Non Marking Clamp

Camlok Non Marking Clamp

Ref:
SKU: LJ 500 Category:

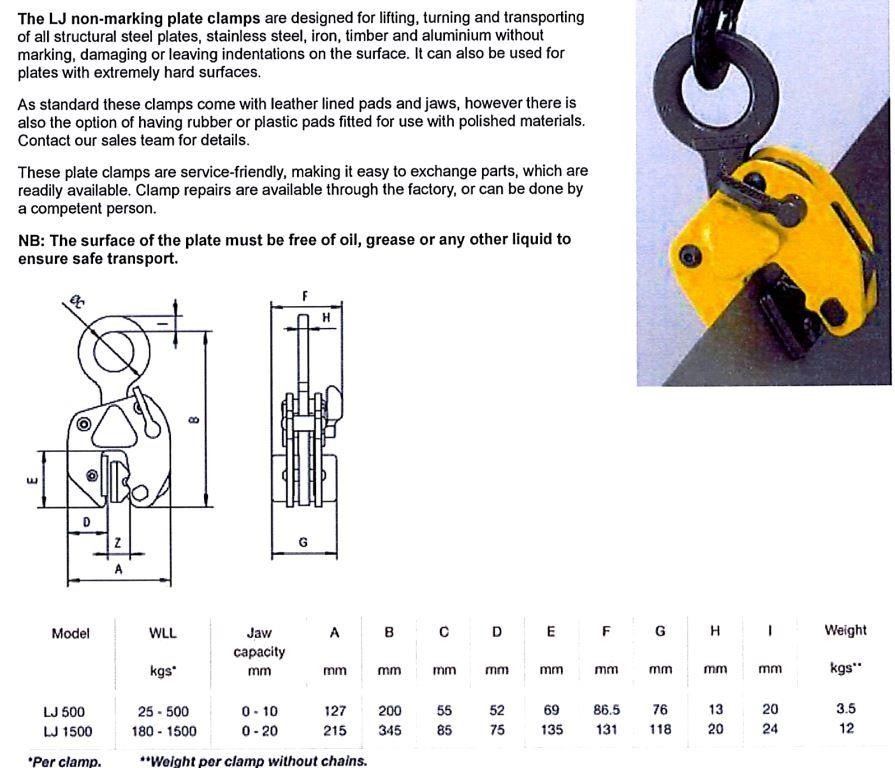

The LJ non-marking plate clamps are designed for lifting, turning and transporting of all structural steel plates, stainless steel, iron, timber and aluminium without marking, damaging or leaving indentations on the surface. It can also be used for plates with extremely hard surfaces.



* Fitted with Leather Pads

$1,650.00

each

More information:

Extra Info:  There is no upper limit of material hardness for a Gentle Grip Clamp as they do NOT grip by "Teeth" like a conventional vertical clamp. The Camlok LJ & TSB Clamps grip by friction.

Suitable for use on Hardox Plate 400 & 500 Brinell

Designed for use with plate cut on the water-jet cutter, but obviously not completely submerged.



WARNING: The non marking LJ clamp should not be subjected to any side loading if possible. Any side loading will detract from the load carrying grip with the risk of slipping. We still show the 15degree tolerance but I would strongly recommend that the clamp is used with no side loading.  The LJ clamp should not be used on two leg slings

Downloads:

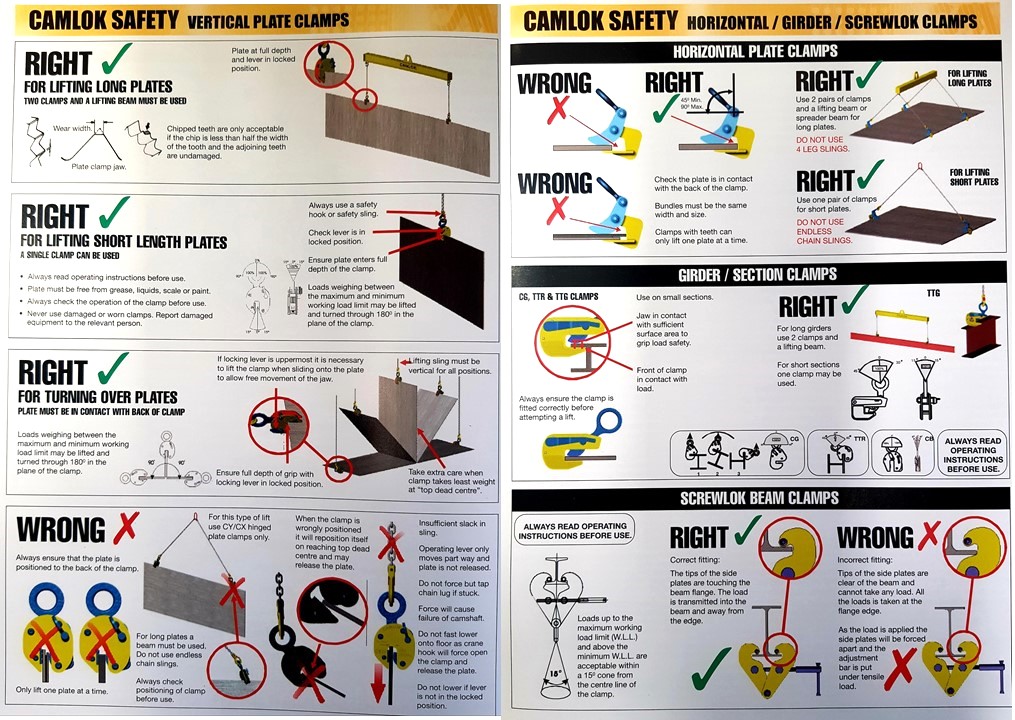

Clamp Safety.jpg

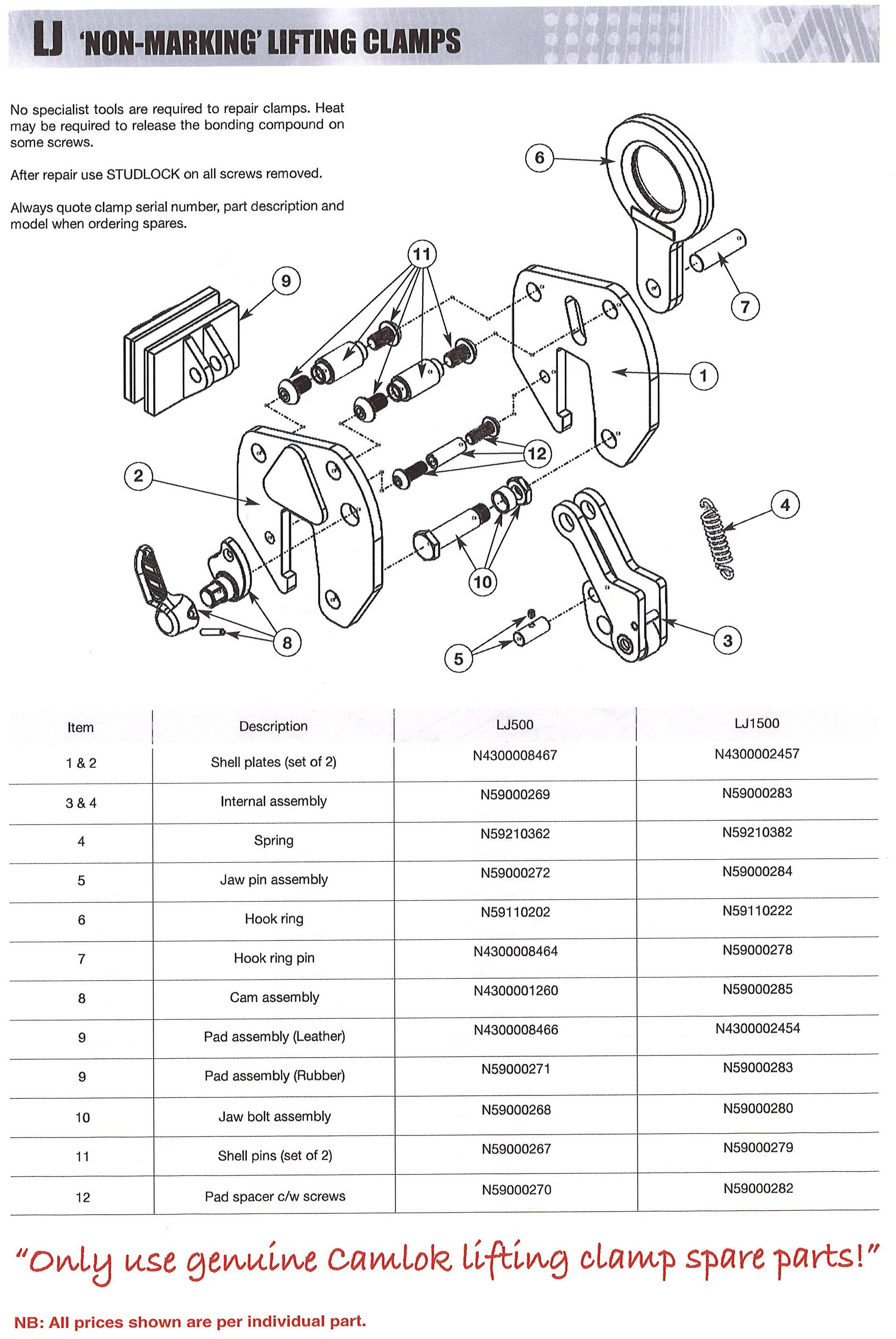

Camlok LJ NM Clamp Parts List .jpg
