10T elebia Quick Release Drop Hook

Name: 10T elebia Quick Release Drop Hook
SKU: D10
Availability: InStock

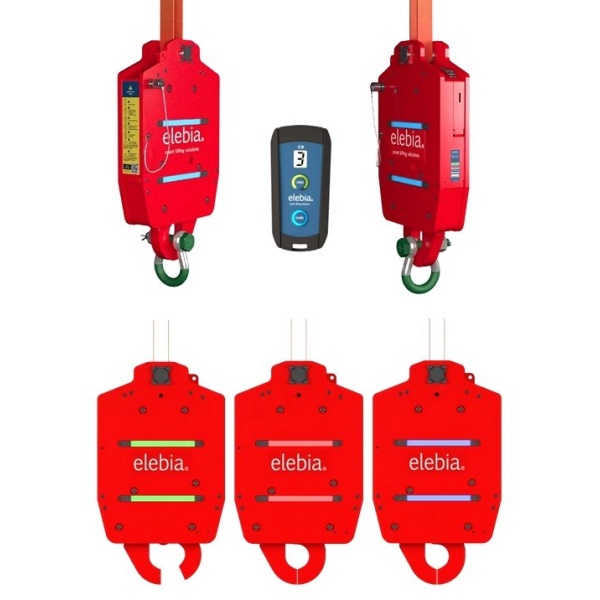

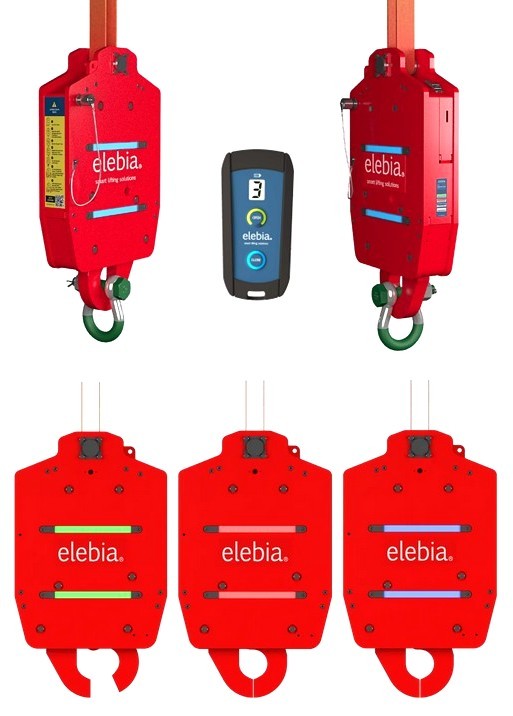

10T elebia Quick Release Drop Hook

Ref:

SKU: D10 Category: ELEBIA Release Systems

High-Brightness LED Status Indicator

The color of the LEDs indicates the state of the hook.

Green: D10 is Open / Unlocked
Red: Transitioning: Watch out! Load about to drop.
Blue: D10 is Closed / locked
White: Low Battery

PRICE AND AVAILABLITY TO BE ADVISED

$35,417.00

each

3 in stock

More information:

Specifications of Our Quick Release Hook Drop Test

Nominal Load (Ln)	10t
Accuracy Class	0.5%
Minimum dead load	0% Ln
Service load	150% Ln
Ultimate load limit	>400% Ln
Total error	< ±0.5 % Ln
Repeatability error	< ±0.2% Ln
Temperature effect on zero	< ±0.2% Ln/ 5ºC
Temperature effect on sensitivity	< ±0.2% Ln/ 5ºC
Creep error (30 min)	< ±0.1% Sn
Temperature compensation	-20 to +60 ºC
Storage temperature	– 40 to +95ºC
Service temperature limits	-20 to +90 ºC

Excitation voltage	3…15 V
Imput impedance	400 ±30 Ohm
Environmental Protection	IP66
Material	Stainless steel
Cable gland + Shielded cable 4 wires	5M
