Name: 10mm x 40P AMG ML FOW Chain S/C
SKU: FOWC-10G8
Availability: InStock

Importer and Distributors of quality products to industry

10mm x 40P AMG ML FOW Chain S/C

REF: FOWC-10G8

$28.35

Each

Quantity Options

Clear

* Grade 80 Chain

* Calibrated Mid Link Chain

* 40.0mm Pitch – Inside Length

* 34.5mm Outside Width (14.0mm IW)

Stamped with..

* Brand “AMG”

* Grade/Link Size “8M”

* Traceabilty Batch Number

Tolerance is based upon 11 link length

Calibration is set to industry requirements

Consistancy should be same or very close for each drum batch

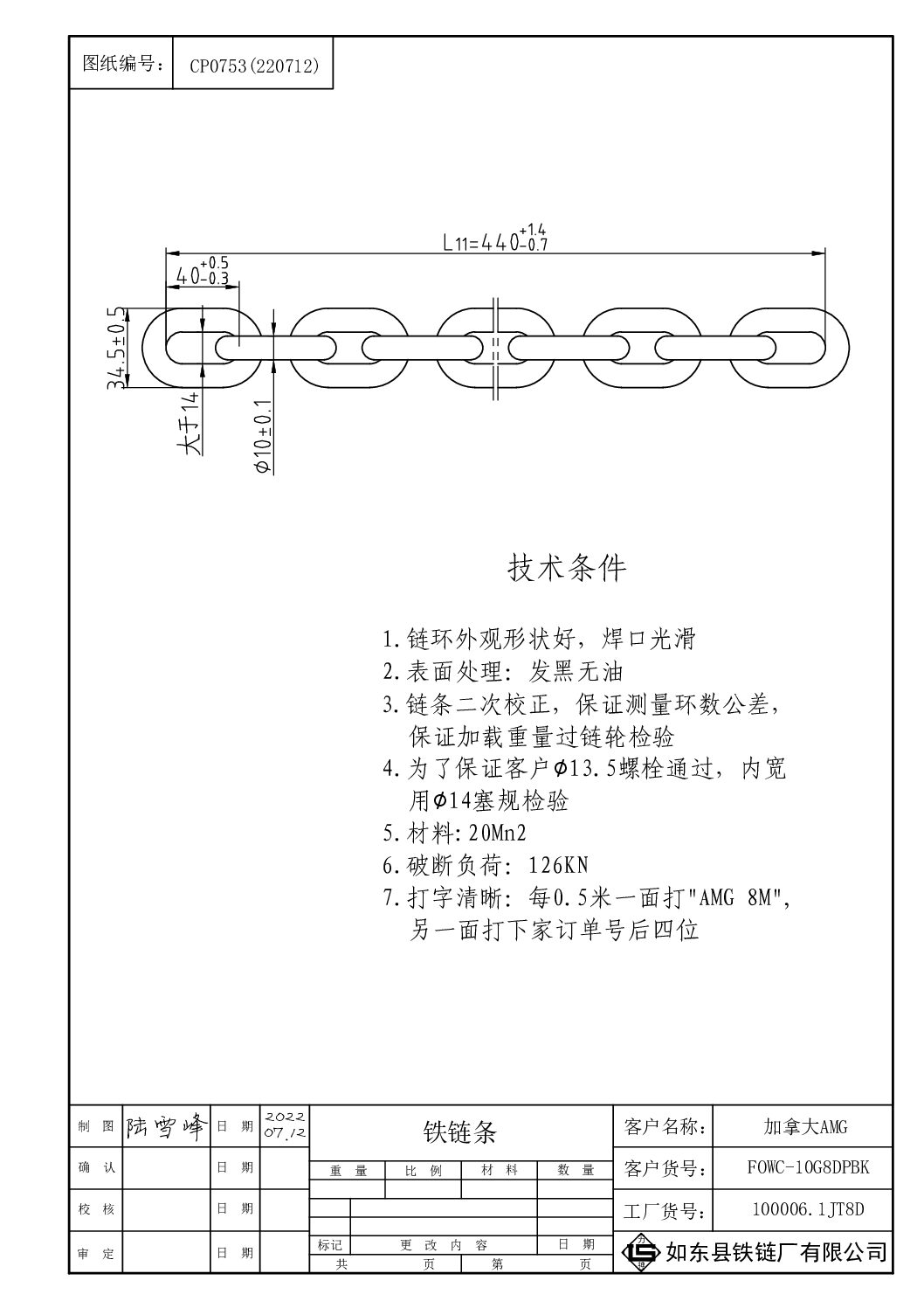

Refer attached drawing for Pitch variation

Factory refers generally to EN818-7 Hoist Chain as Industry Standards

Full Drum 300m / 594kg

Approx 1.9kg per Mtr

Downloads:

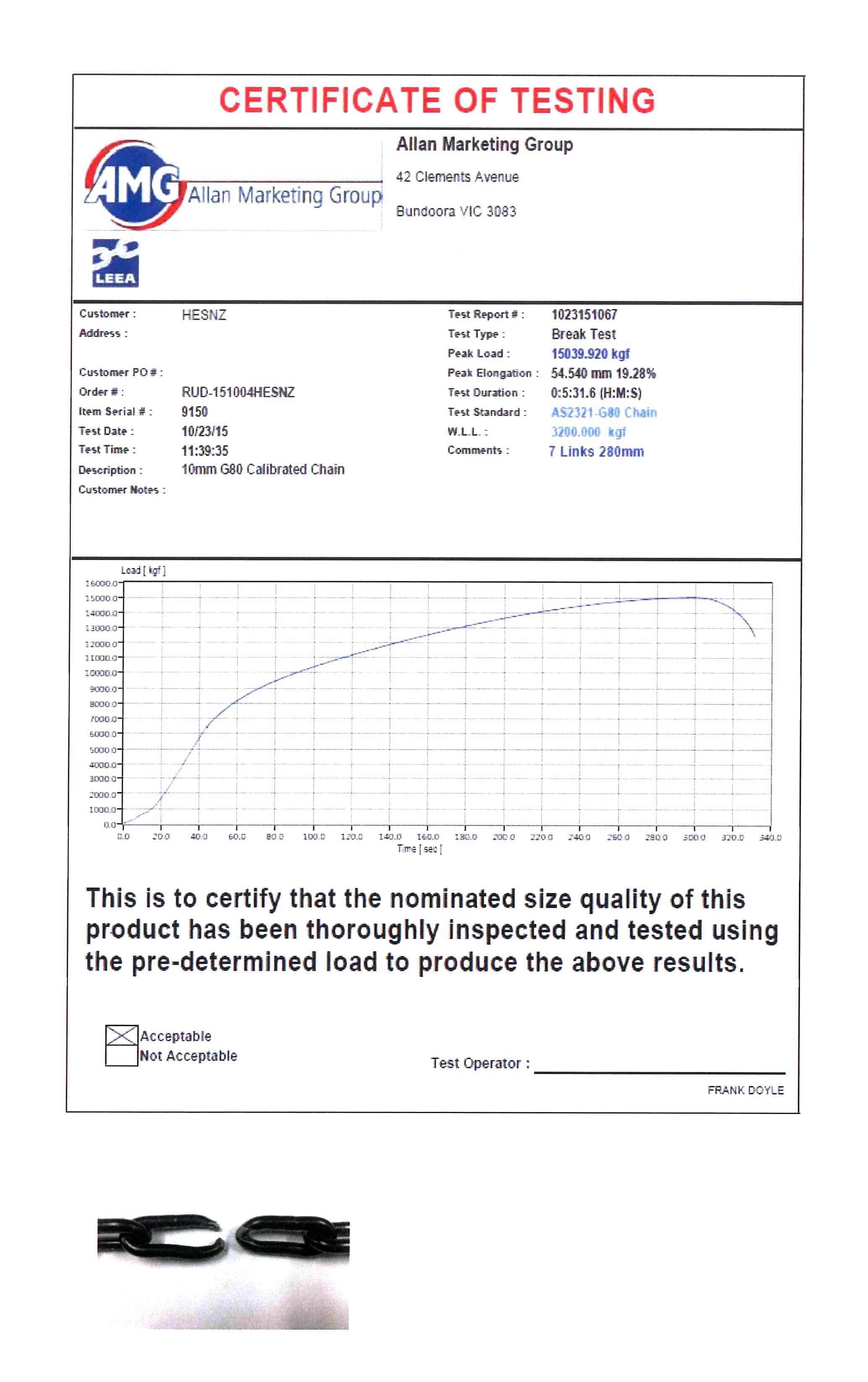

Break Test 10mm FOWC.jpg

Weight	1.65 kg
Quantity Options	Full 300m Drum, Per Mtr – Cut Length
