Box Quantities;
M6 / 250, M8 / 200, M10 / 150, M12 / 100, M16 / 60, M20 / 40, M24 /20,
M30 / 10, M36 / 5, M42 / 4, M48 / 3
If you require a Nut to fasten, SLR suggest using a Grade 8.8 or above
Downloads:
Lifting Eye Bolt – SLR Grade 80
Lifting Eye Bolt – SLR Grade 80
$17.00
Each
Each
* Grade 80
* Safety Factor 4:1
* Marking & Traceability
* Standards CE EN1677-1
* Made in China
* Powder Plastified Yellow RAL1003
* Metric Standard Thread

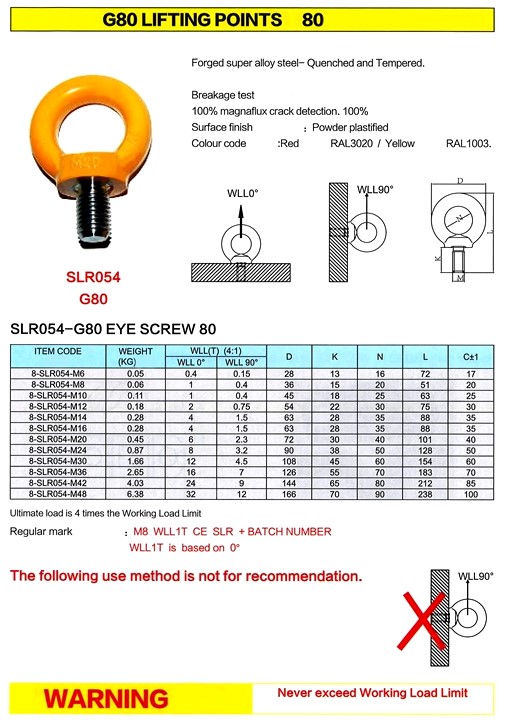

“Straight Lift Rating” Check Chart for 90 Deg Lift
| Weight | 0.06 kg |
|---|---|
| Size / Rating | M10 – 1.0T WLL, M12 – 2.0T WLL, M14 – 4.0T WLL, M16 – 4.0T WLL, M18 – 5.0T, M20 – 6.0T WLL, M24 – 8.0T WLL, M30 – 12.0T WLL, M36 – 16.0T WLL, M42 – 24.0T WLL, M48 – 32.0T WLL, M6 – 0.40T WLL, M8 – 0.80T WLL |
