Custom – Mega DSS Rings

Name: Custom - Mega DSS Rings
SKU: 7788
Availability: OutOfStock

Custom – Mega DSS Rings

Ref:

Category: Lifting Rings - CODIPRO

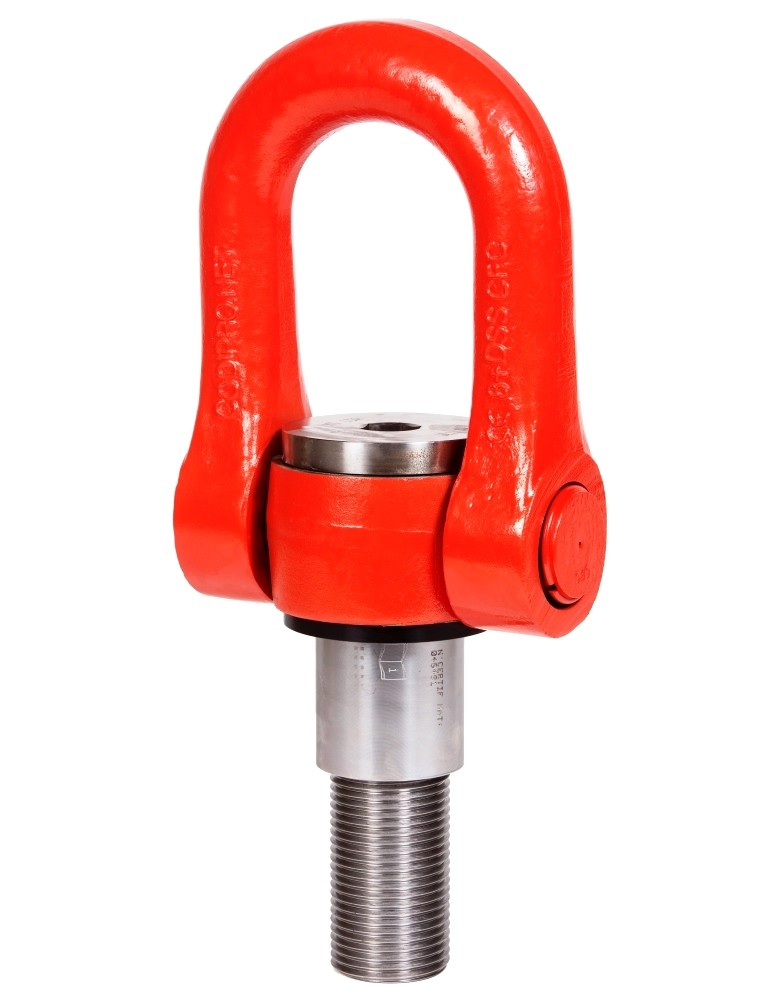

The universal Swivel Shackle Mega DSS has been especially developped for lifting and turning loads up to 50 tons with swivel lifting rings.

The universal swivel shackle Mega DSS can be used directly with the hook of the traveling crane.

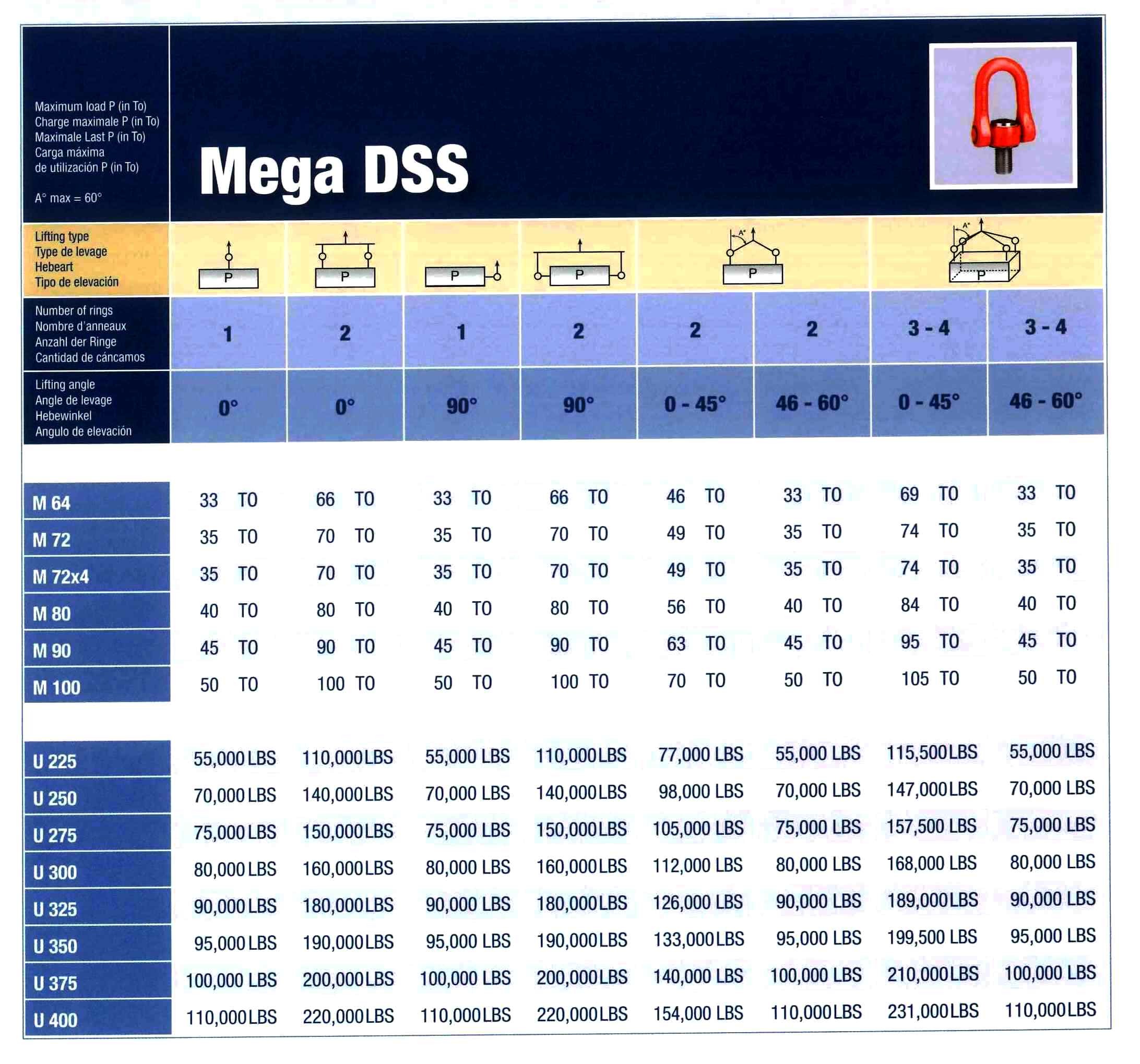

Click on “DOWNLOAD” to view Data Sheet

$0.00

each

Out of stock

More information:

The characteristics of the universal Swivel Shackle: Mega DSS

Its double articulation allows it to line up perfectly with the sling.
The Swivel Shackle Mega DSS has been developped to be used directly with the hook of the traveling crane.
Steel with high resistance class >8
Safety factor 4

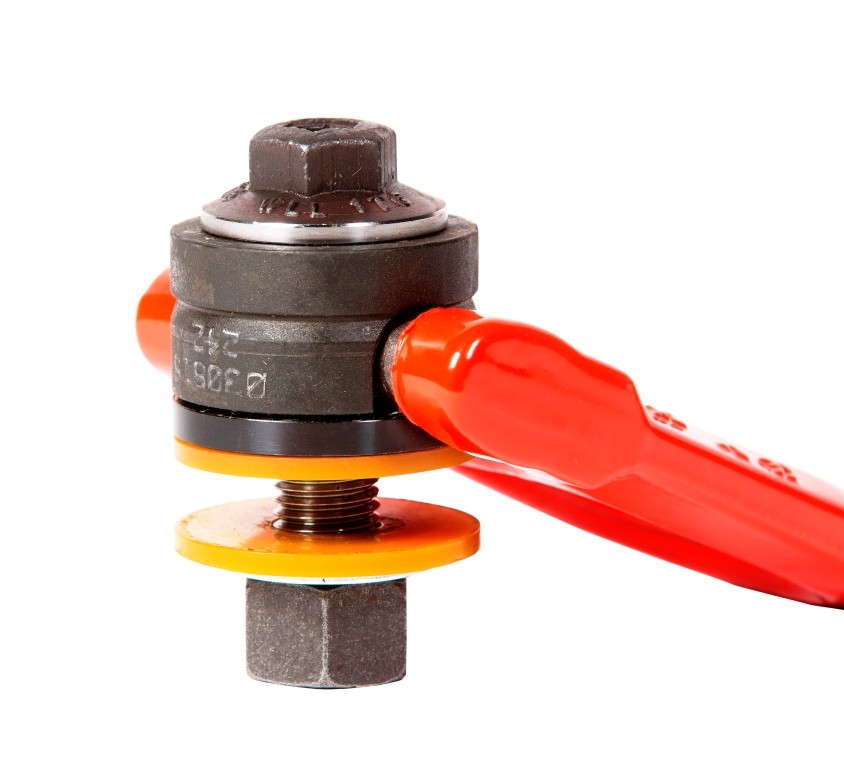

Tightening by Allen key
Very ergonomic: reduced place by higher WLL
Clear indication of the WLL by engraving
Individual traceability
From M64 to M100 as standard; for loads up to 50 tons
From UNC 2″1/4-4 toUNC4″-4; for loads up to 110,000 LBS
All standard swivel shackles DSS are in stock.
Possibilty to produce special threads or lengths of axes within a short delivery time. (+/- 1 week).

As all the swivel lifting rings of our assortment, the Swivel Shackle Mega DSS is in accordance with the new directive on machinery 2006/42/EC.

For Product Certification go to CODITRACER on: https://portal.coditracer.com/
